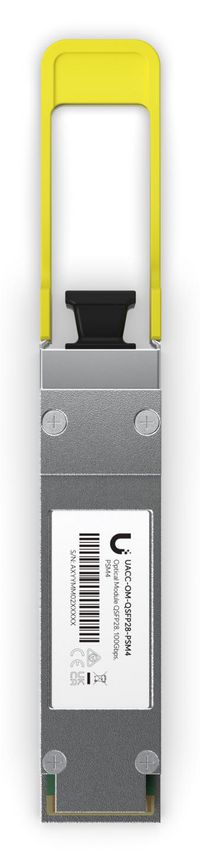

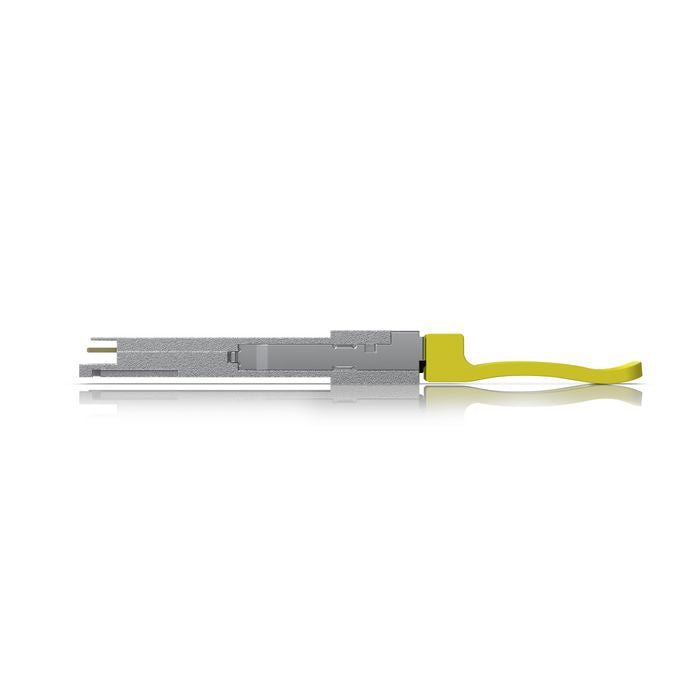

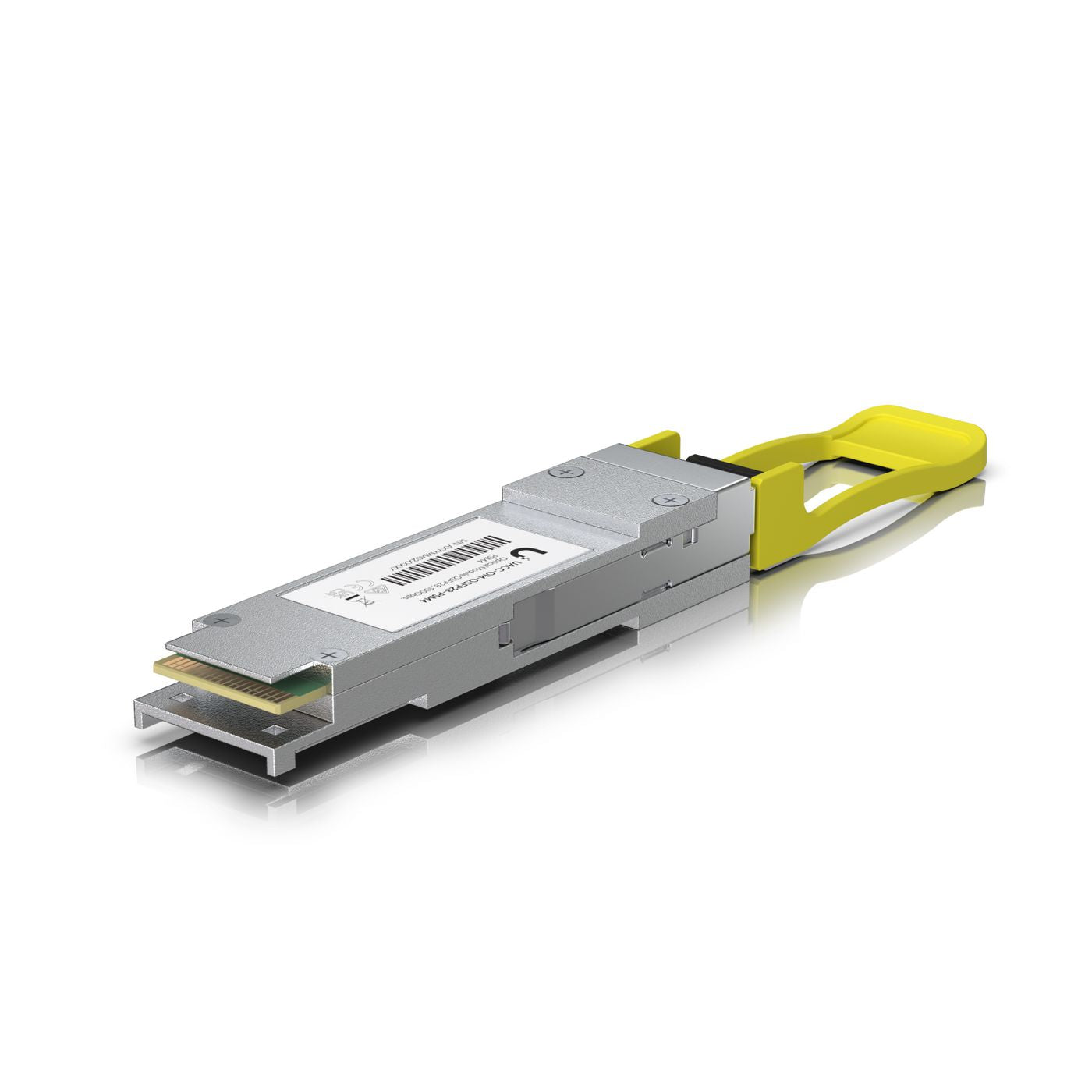

The Ubiquiti UACC-OM-QSFP28-PSM4 is a high-speed QSFP28 network transceiver designed for 100G connections over single-mode fibre. With a maximum transfer distance of 2 km and an MPO-12 APC connector, this module delivers reliable, high-capacity networking for professional environments.
Key Features: - 100 Gbps maximum data rate - Up to 2,000 m transfer distance - MPO-12 APC connector - QSFP28 form factor
What's Included: - 1 x Ubiquiti UACC-OM-QSFP28-PSM4 Transceiver - User documentation
Warranty and Certification: - 2-year manufacturer warranty - CE and RoHS compliant for UK/EU use
Install the transceiver into a compatible QSFP28 port. Connect single-mode fibre cables using the MPO-12 APC connector. Use for high-speed 100G network links up to 2 km.
Key Product Details:
MPN: UACC-OM-QSFP28-PSM4
EAN: 810084690017
Manufacturer: Ubiquiti
Condition: New
Technical Specifications:
Ean/Upc
810084690017
Warranty
2 Year(s)
Form Factor
QSFP28
Max Data Rate
100 Gbps
Interface Type
QSFP28 / QSFP+
Product Colour
Grey, Yellow
Rx Wavelength (Min)
1310 nm
Tx Wavelength (Min)
1310 nm
Sfp Transceiver Type
Fiber optic
Fiber Optic Connector
MPO-12
Maximum Transfer Distance
2000 m
Maximum Data Transfer Rate
100000 Mbit/s
Operating Temperature (T-T)
0 - 70 °C
Maximum Operating Temperature
70 °C
Minimum Operating Temperature
0 °C
Single-Mode Fiber (Smf) Supported
Yes
