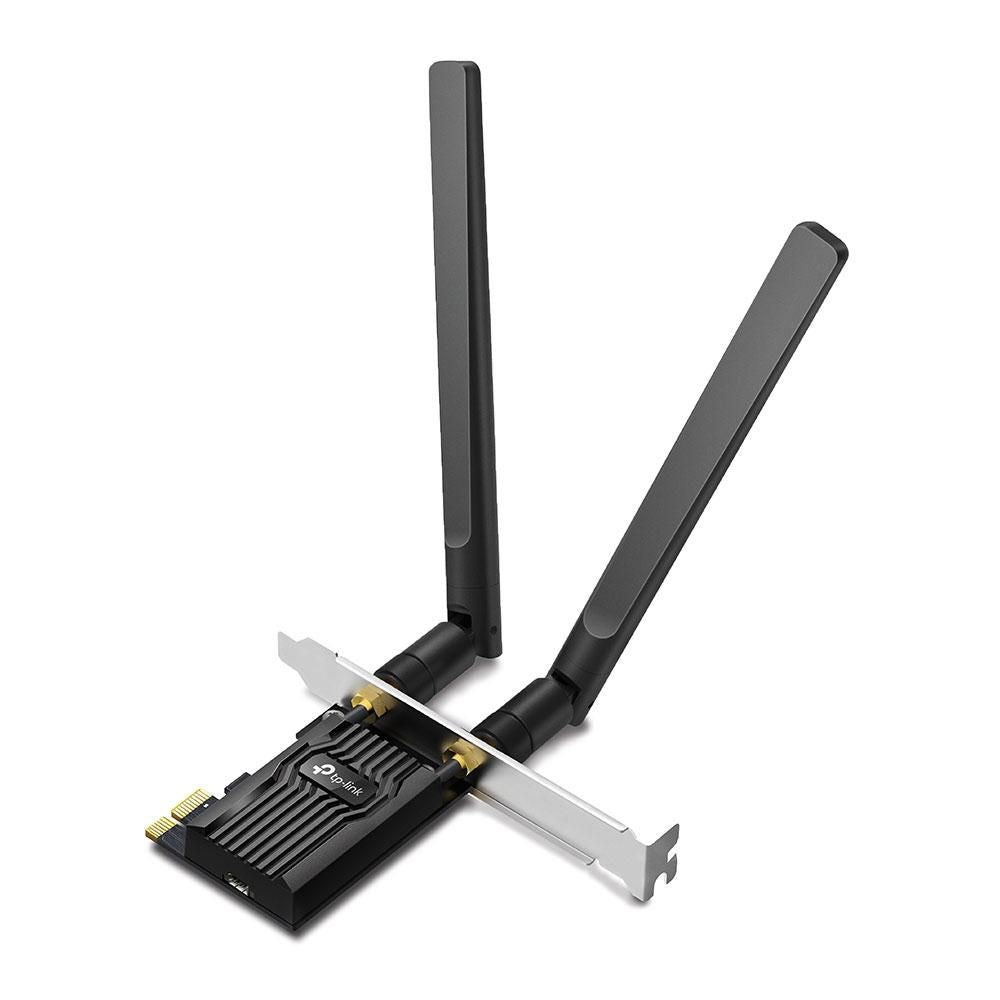

TP-Link ARCHER TX20E AX1800 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter
TP-Link ARCHER TX20E AX1800 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter
Wi-Fi 6 PCIe Adapter | Dual-band 2.4/5 GHz | Bluetooth 5.2 | Enhanced Security WPA3
Regular price
£36.74 GBP
(incl. VAT)
Regular price
Sale price
£36.74 GBP
(incl. VAT)
Unit price
/
per
Shipping calculated at checkout.
In stock: 25
Couldn't load pickup availability
- Trusted by Thousands
- Order with confidence
- Fully tracked shipping
Product Description:
AX1800 Wi-Fi 6, 802.11ax, 2.4/5 GHz, Bluetooth 5.2, 55 x 36 x 11.5 mm
TP-Link AX1800 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter. Internal. Connectivity technology: Wireless, Host interface: PCI Express, Interface: WLAN / Bluetooth. Maximum data transfer rate: 1800 Mbit/s, Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi band: Dual-band (2.4 GHz / 5 GHz). Product colour: Black
Key Features:

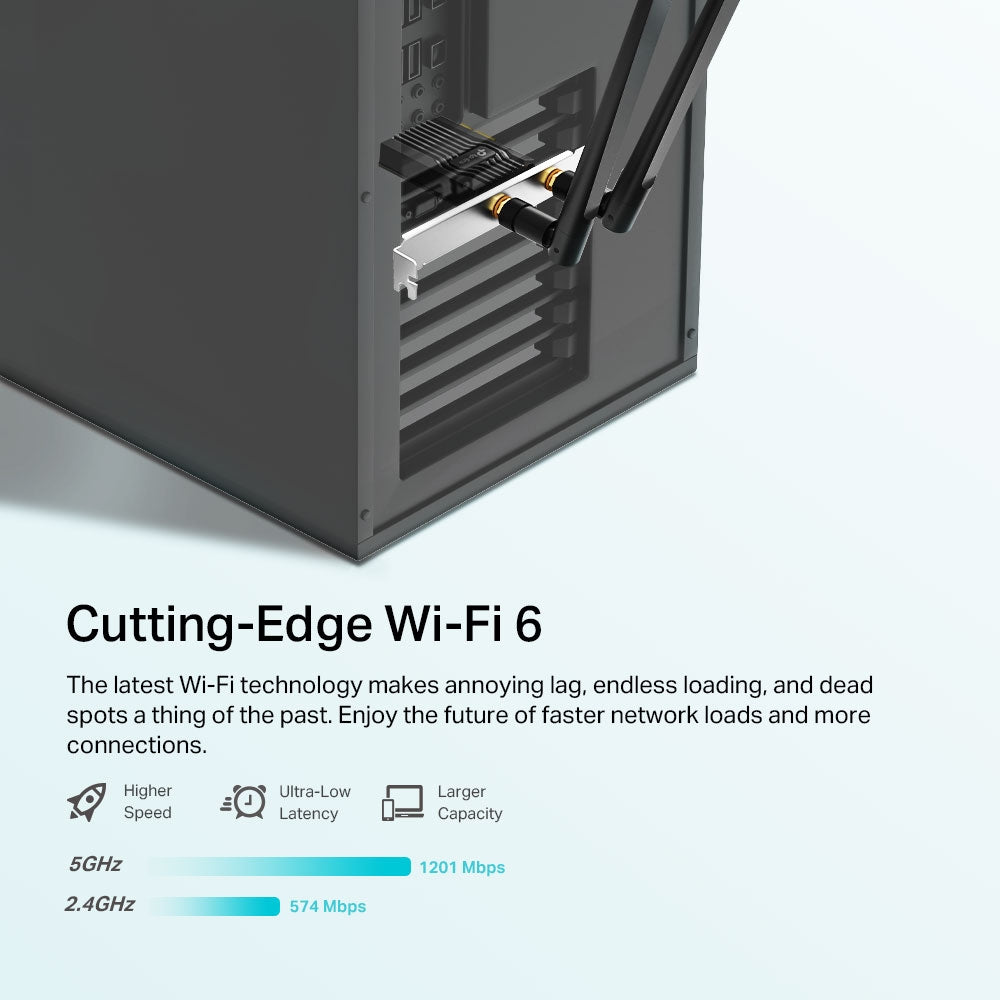

- Unrivalled Wi-Fi 6 speed up to 1201 Mbps (5 GHz) + 574 Mbps (2.4 GHz)

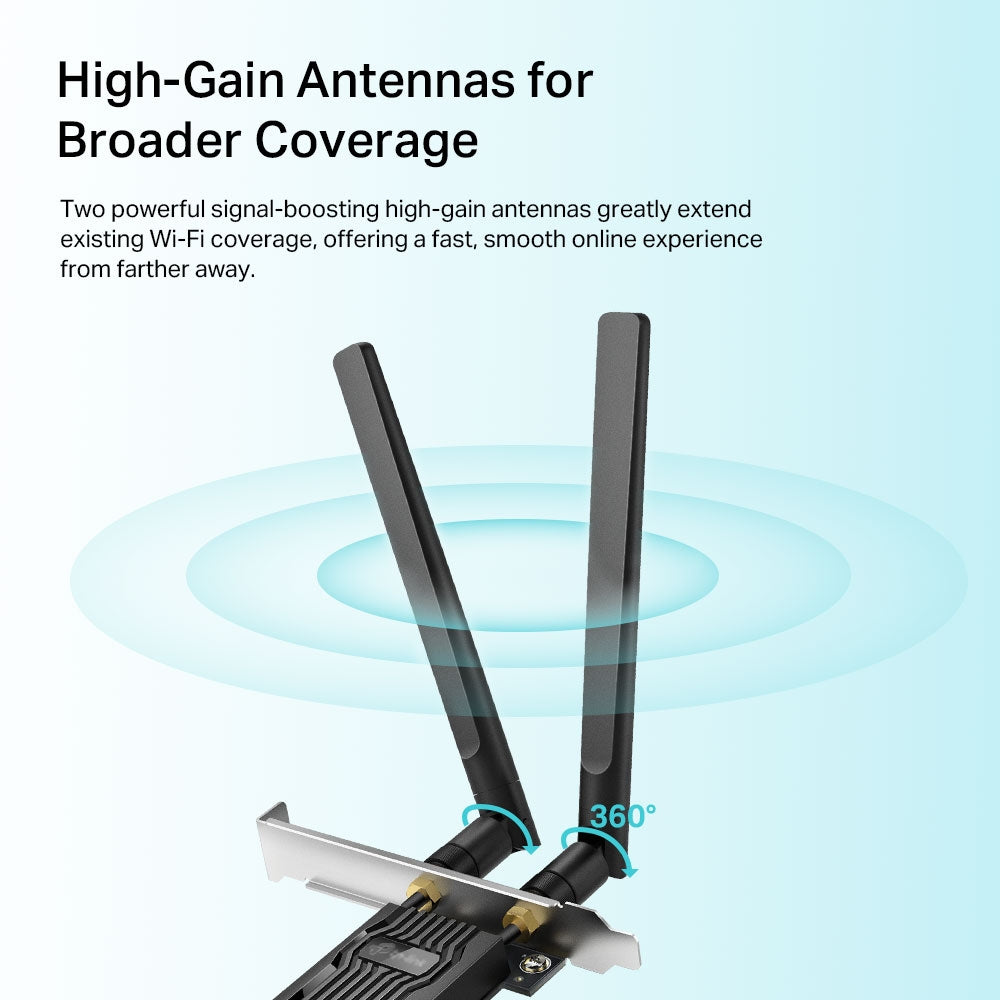

- Wider signal coverage with two external high-gain antennas

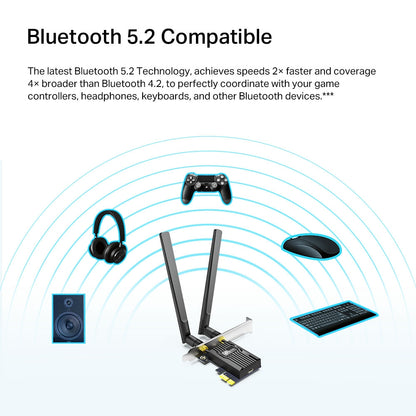

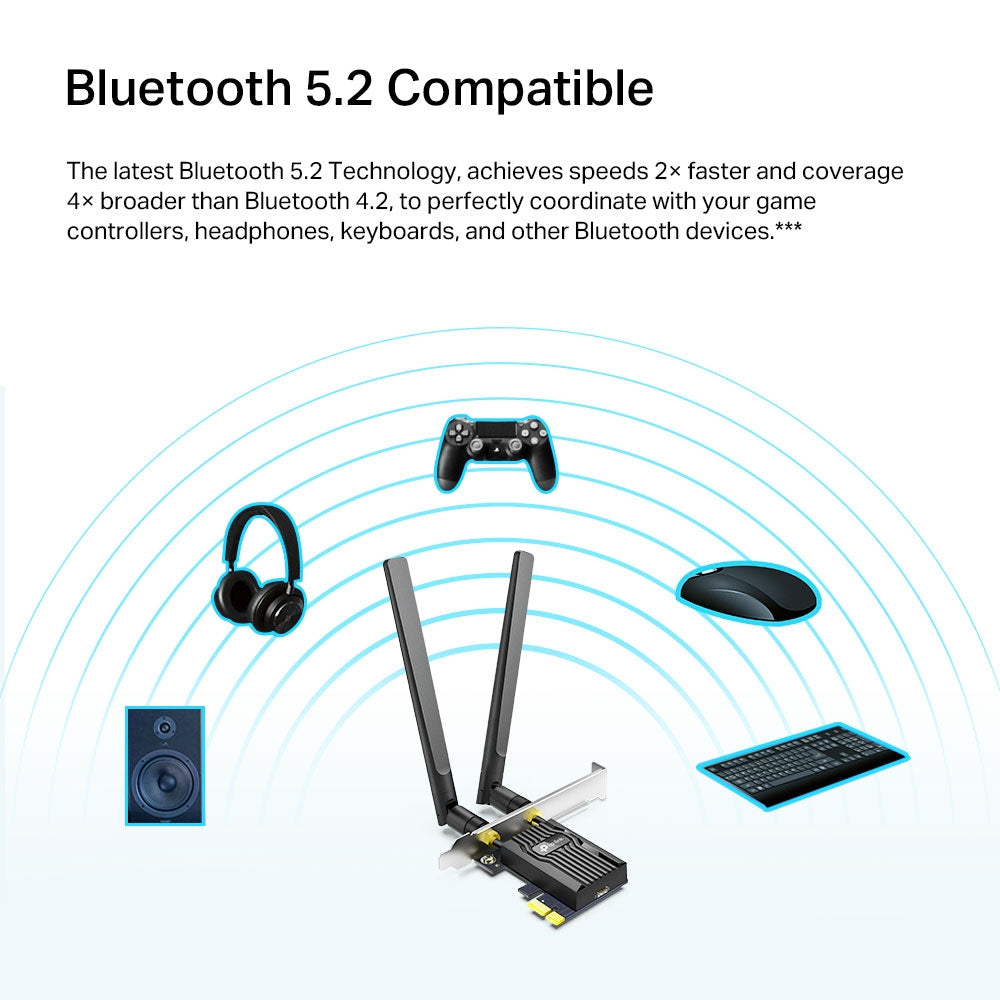

- Bluetooth 5.2 for faster speed and broader coverage
- Enhanced security with WPA3 protocol
What's Included:
- Mounting brackets
- Resource CD
- Quick installation guide
TP-Link AX1800 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter. Internal. Connectivity technology: Wireless, Host interface: PCI Express, Interface: WLAN / Bluetooth. Maximum data transfer rate: 1800 Mbit/s, Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi band: Dual-band (2.4 GHz / 5 GHz). Product colour: Black
Key Features:
- Unrivalled Wi-Fi 6 speed up to 1201 Mbps (5 GHz) + 574 Mbps (2.4 GHz)
- Wider signal coverage with two external high-gain antennas
- Bluetooth 5.2 for faster speed and broader coverage
- Enhanced security with WPA3 protocol
What's Included:
- Mounting brackets
- Resource CD
- Quick installation guide
Usage:
Install the PCIe adapter into an available PCI Express slot on your PC. Connect to dual-band Wi-Fi networks for faster internet speeds. Use Bluetooth 5.2 for improved wireless device connections.
Key Product Details:
MPN: ARCHER TX20E
EAN: 4897098688809
Manufacturer: TP-Link
Condition: New
Technical Specifications:
| Depth | 78.5 mm |
|---|---|
| Wi-Fi | Yes |
| Width | 120.8 mm |
| Height | 20.9 mm |
| Antenna | Yes |
| Internal | Yes |
| Bluetooth | Yes |
| Interface | WLAN / Bluetooth |
| Modulation | 16-QAM, 64-QAM, 256-QAM, 1024-QAM, CCK, DBPSK, DQPSK, OFDM |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Resource CD | Yes |
| Component for | PC/Server |
| Package depth | 152.5 mm |
| Package width | 201.5 mm |
| Plug and Play | Yes |
| Antenna design | External |
| Host interface | PCI Express |
| Package height | 41.5 mm |
| Package weight | 220 g |
| Product colour | Black |
| Operating modes | Infrastructure mode |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Bluetooth version | 5.2 |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Security algorithms | 64-bit WEP, 128-bit WEP, 802.1x RADIUS, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3 |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Bluetooth header cable | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Connectivity technology | Wireless |
| Transmitting power (CE) | 23 dBm |
| Quick installation guide | Yes |
| Transmitting power (FCC) | 27 dBm |
| Storage temperature (T-T) | -40 - 70 °C |
| Sustainability compliance | Yes |
| Maximum data transfer rate | 1800 Mbit/s |
| Mounting brackets included | Yes |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating relative humidity (H-H) | 10 - 90% |
| WLAN data transfer rates supported | 11,54,300,574,867,1200 Mbit/s |
| Windows operating systems supported | Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 10 x64, Windows 11 Enterprise x64, Windows 11 x64 |
