Planet

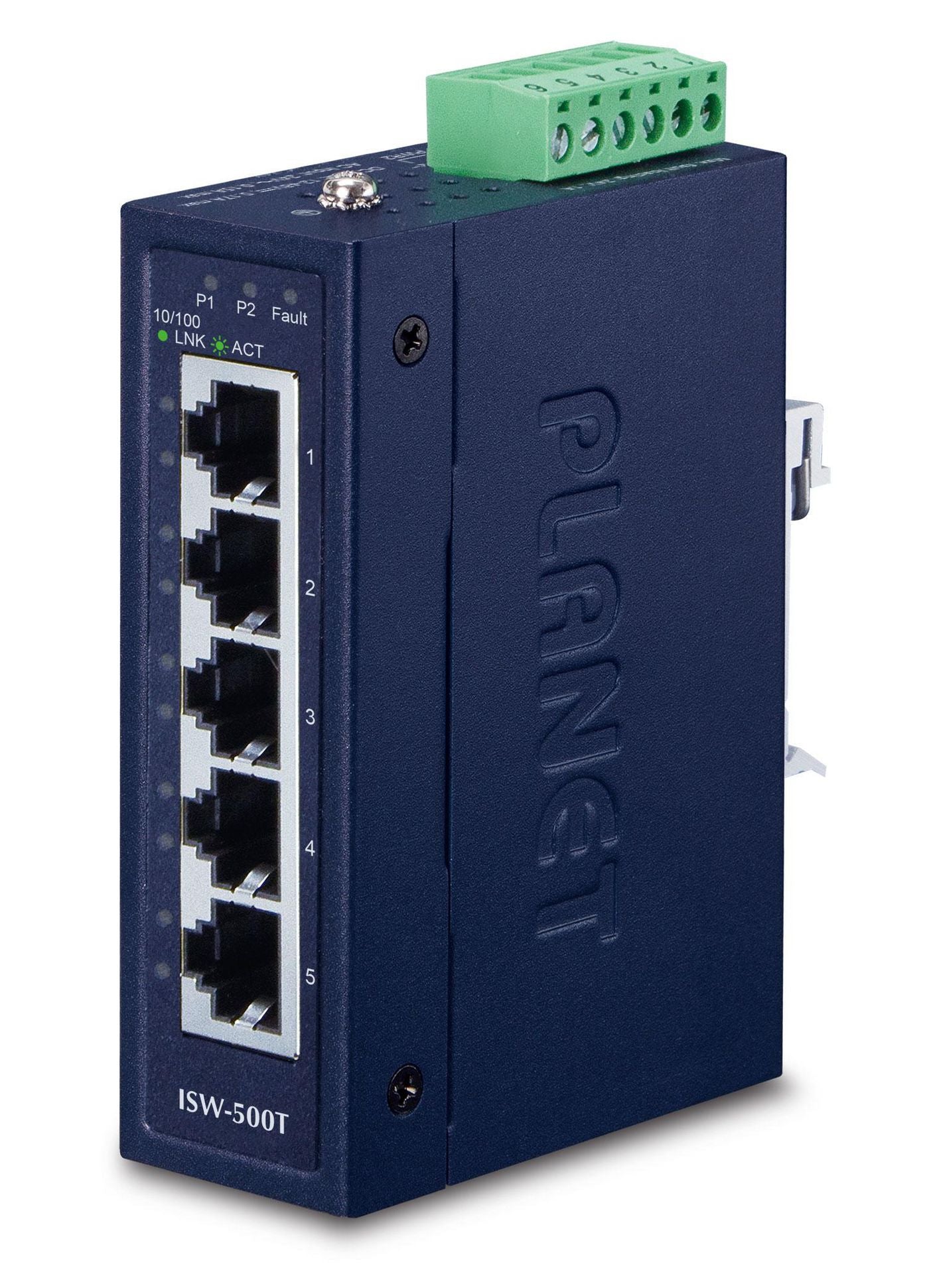

Planet ISW-500T Industrial 5-Port Ethernet Switch – Unmanaged, 1Gbps, CE Certified
Planet ISW-500T Industrial 5-Port Ethernet Switch – Unmanaged, 1Gbps, CE Certified
Industrial 5-port Ethernet switch | Energy-saving technology | Dual power input for reliability | IP30-rated compact metal case
Regular price
£62.39 GBP
(incl. VAT)
Regular price
Sale price
£62.39 GBP
(incl. VAT)
Unit price
/
per
Shipping calculated at checkout.
In stock: 23
Couldn't load pickup availability
- Trusted by Thousands
- Order with confidence
- Fully tracked shipping
Product Description:
The Planet ISW-500T is a compact, industrial-grade 5-port Ethernet switch designed for reliable and efficient networking in challenging environments. With a rugged IP30-rated enclosure, dual power input, and advanced energy-saving features, this unmanaged switch is ideal for industrial automation and IIoT applications.
Key Features:
- 5 x 10/100Mbps Fast Ethernet ports
- Unmanaged switch for simple, maintenance-free operation
- IP30-rated compact metal case
- Dual power input (12–48V DC or 24V AC) for high availability
What's Included:
- Planet ISW-500T Industrial 5-Port Ethernet Switch
- Mounting accessories
- User documentation
Warranty and Certification:
5-year manufacturer warranty, CE and FCC Part 15 Class A certified
Key Features:
- 5 x 10/100Mbps Fast Ethernet ports
- Unmanaged switch for simple, maintenance-free operation
- IP30-rated compact metal case
- Dual power input (12–48V DC or 24V AC) for high availability
What's Included:
- Planet ISW-500T Industrial 5-Port Ethernet Switch
- Mounting accessories
- User documentation
Warranty and Certification:
5-year manufacturer warranty, CE and FCC Part 15 Class A certified
Usage:
Install the switch in your industrial network environment. Connect devices using standard Ethernet cables. Use dual power inputs for continuous operation. Mount on wall or DIN rail as needed.
Key Product Details:
MPN: ISW-500T
EAN: 4711605282796
Manufacturer: Planet
Condition: New
Technical Specifications:
| Warranty | 5 Year(s) |
|---|---|
| Throughput | 0.74 Mpps |
| Switch Type | Unmanaged |
| Certification | FCC Part 15 Class A, CE |
| Rack Mounting | No |
| Auto Mdi/Mdi-X | Yes |
| Product Colour | Blue |
| Wall Mountable | Yes |
| Auto-Negotiation | Yes |
| Din Rail Mounting | Yes |
| Mac Address Table | 1024 entries |
| Store-And-Forward | Yes |
| Switching Capacity | 1 Gbit/s |
| Copper Ethernet Cabling Technology | 100BASE-TX, 10BASE-T |
