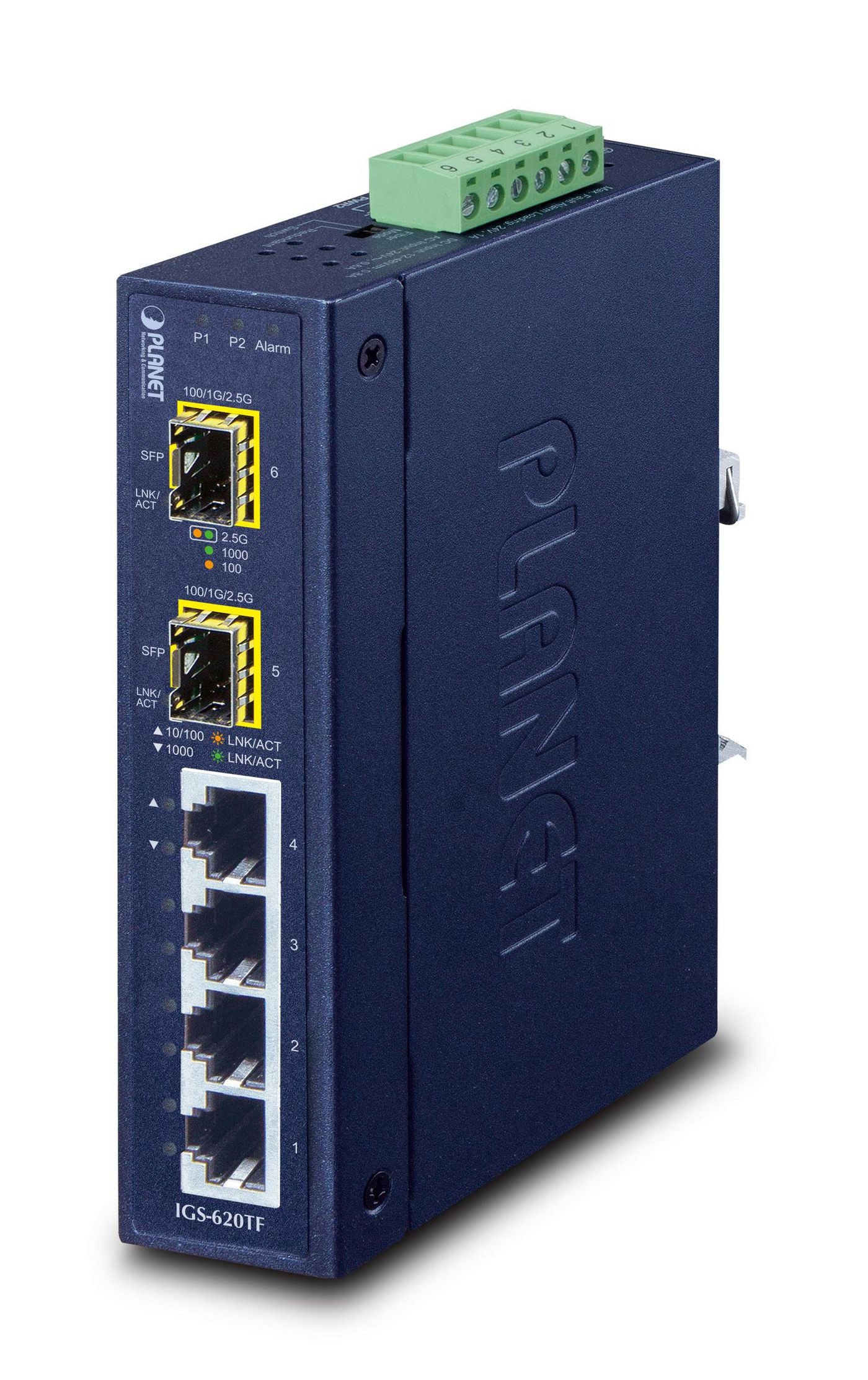

Planet IGS-620TF Industrial 6-Port Gigabit Ethernet Switch – IP30, Metal, 7.5W
Planet IGS-620TF Industrial 6-Port Gigabit Ethernet Switch – IP30, Metal, 7.5W
Industrial Gigabit Switch | 6 Ports with SFP Slots | IP30 Metal Housing | Redundant Power Inputs
Regular price
£144.44 GBP
(incl. VAT)
Regular price
Sale price
£144.44 GBP
(incl. VAT)
Unit price
/
per
Shipping calculated at checkout.
In stock: 24
Couldn't load pickup availability
- Trusted by Thousands
- Order with confidence
- Fully tracked shipping
Product Description:
The Planet IGS-620TF is an industrial-grade 6-port unmanaged Gigabit Ethernet switch, engineered for high performance and reliability in challenging environments. With 4 Gigabit RJ-45 ports and 2 SFP slots, this switch offers flexible network expansion and redundancy. Its rugged IP30 metal housing, wide temperature tolerance, and redundant power inputs make it ideal for mission-critical applications.
Key Features:
- 4 x 10/100/1000Base-T RJ-45 ports
- 2 x 100/1000Base-X SFP slots
- Store-and-forward switching
- Jumbo frame support (9216 bytes)
- DIN rail and wall mountable
- Redundant power supply support
What's Included:
- Planet IGS-620TF Ethernet Switch
- User documentation
Warranty and Certification:
- 5-year manufacturer warranty
- CE and FCC Part 15 Class A certified
Key Features:
- 4 x 10/100/1000Base-T RJ-45 ports
- 2 x 100/1000Base-X SFP slots
- Store-and-forward switching
- Jumbo frame support (9216 bytes)
- DIN rail and wall mountable
- Redundant power supply support
What's Included:
- Planet IGS-620TF Ethernet Switch
- User documentation
Warranty and Certification:
- 5-year manufacturer warranty
- CE and FCC Part 15 Class A certified
Usage:
Install the switch on a DIN rail or wall mount for stable deployment. Connect devices using the RJ-45 ports or fibre via SFP slots. Configure the DIP switch to select 6-port or 4+2 fibre redundant mode as needed.
Key Product Details:
MPN: IGS-620TF
EAN: 4711213689536
Manufacturer: Planet
Condition: New
Technical Specifications:
| Warranty | 5 Year(s) |
|---|---|
| Stackable | No |
| Brand Name | Planet |
| Fiber Type | Multi-mode |
| Throughput | 13.39 Mpps |
| Jumbo Frames | 9216 |
| Certification | FCC Part 15 Class A, CE |
| Rack Mounting | No |
| Led Indicators | Yes |
| Product Colour | Blue |
| Wall Mountable | Yes |
| Dc Input Voltage | 12 - 48 V |
| Housing Material | Metal |
| Din Rail Mounting | Yes |
| Mac Address Table | 4000 entries |
| Store-And-Forward | Yes |
| Switching Capacity | 18 Gbit/s |
| Management Features | Switch type Unmanaged |
| Jumbo Frames Support | Yes |
| Fiber Optic Connector | SFP |
| Power Consumption (Typical) | 7.5 W |
| Installed Sfp Modules Quantity | 2 |
| Fiber Ethernet Cabling Technology | 1000BASE‑LX, 1000BASE‑SX, 100BASE-FX |
| Copper Ethernet Cabling Technology | 1000BASE-T, 100BASE-T, 10BASE-T |
| International Protection (Ip) Code | IP30 |
| Basic Switching Rj-45 Ethernet Ports Type | Gigabit Ethernet (10/100/1000) |
| Basic Switching Rj-45 Ethernet Ports Quantity | 4 |
