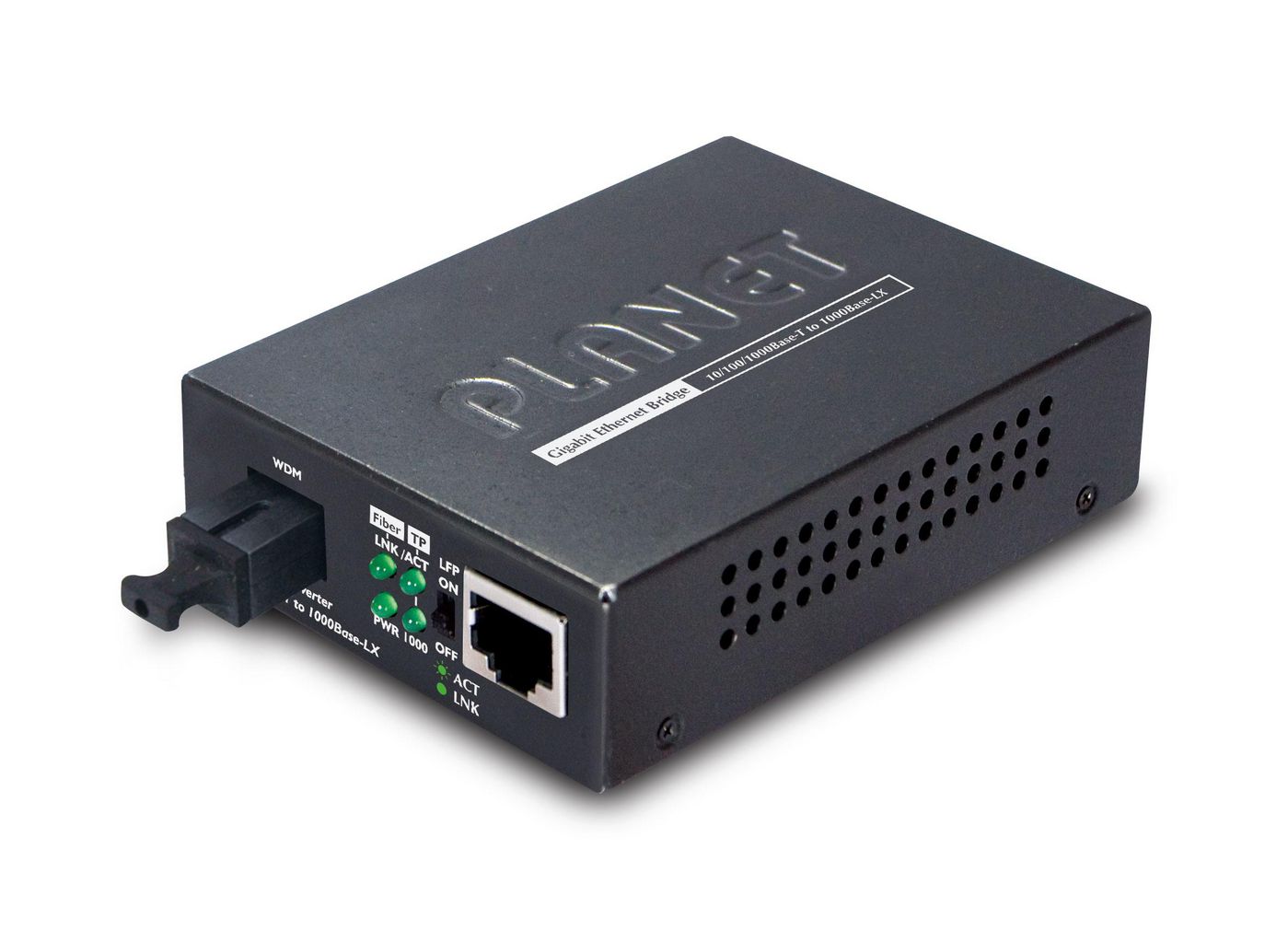

Planet GT-806A15 Media Converter – Gigabit Ethernet 1000BASE-LX WDM 15km
Planet GT-806A15 Media Converter – Gigabit Ethernet 1000BASE-LX WDM 15km
Gigabit Ethernet speed | 15km fibre reach | Auto MDI/MDI-X | Certified safety
Regular price
£66.23 GBP
(incl. VAT)
Regular price
Sale price
£66.23 GBP
(incl. VAT)
Unit price
/
per
Shipping calculated at checkout.
In stock: 11
Couldn't load pickup availability
- Trusted by Thousands
- Order with confidence
- Fully tracked shipping
Product Description:
The Planet GT-806A15 Media Converter offers a robust solution for extending your network with high-speed Gigabit Ethernet and reliable fibre connectivity. Designed for professional and enterprise environments, this converter enables seamless conversion between copper and fibre networks, supporting long-distance data transmission up to 15km. With advanced features, industry certifications, and a 3-year warranty, it delivers dependable performance and peace of mind.
Key Features:
- High-speed data transfer up to 2000 Mbit/s
- Supports 1000BASE-LX (WDM) fibre transmission up to 15km
- Auto MDI/MDI-X and LED indicators for easy installation and monitoring
- Jumbo frames support (up to 9000 bytes)
What's Included:
- Planet GT-806A15 Media Converter
- Power Adapter
- User Manual
Warranty and Certification:
3-year manufacturer warranty, FCC and CE certified
Key Features:
- High-speed data transfer up to 2000 Mbit/s
- Supports 1000BASE-LX (WDM) fibre transmission up to 15km
- Auto MDI/MDI-X and LED indicators for easy installation and monitoring
- Jumbo frames support (up to 9000 bytes)
What's Included:
- Planet GT-806A15 Media Converter
- Power Adapter
- User Manual
Warranty and Certification:
3-year manufacturer warranty, FCC and CE certified
Usage:
Connect the media converter between copper and fibre network segments using the RJ-45 and fibre ports. Power the unit with the included adapter. Use LED indicators to monitor connection status. Configure Link Fault Pass through via DIP switch if needed.
Key Product Details:
MPN: GT-806A15
EAN: 4711213686894
Manufacturer: Planet
Condition: New
Technical Specifications:
| Internal | No |
|---|---|
| Warranty | 3 Year(s) |
| Dc-In Jack | Yes |
| Jumbo Frames | 9000 |
| Certification | FCC, CE |
| Input Current | 2 A |
| Input Voltage | 5 V |
| Auto Mdi/Mdi-X | Yes |
| Led Indicators | Yes |
| Product Colour | Black |
| Data Transfer Rate | 1000 Mbit/s |
| Jumbo Frames Support | Yes |
| Networking Standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Connectivity Technology | Wired |
| Ethernet Interface Type | Gigabit Ethernet |
| Ethernet Lan Data Rates | 10, 100, 1000 |
| Ethernet Lan (Rj-45) Ports | 1 |
| Maximum Data Transfer Rate | 2000 Mbit/s |
| Fiber Ethernet Cabling Technology | 1000BASE‑LX |
| Copper Ethernet Cabling Technology | 1000BASE-T, 100BASE-T, 10BASE-T |
