Omada

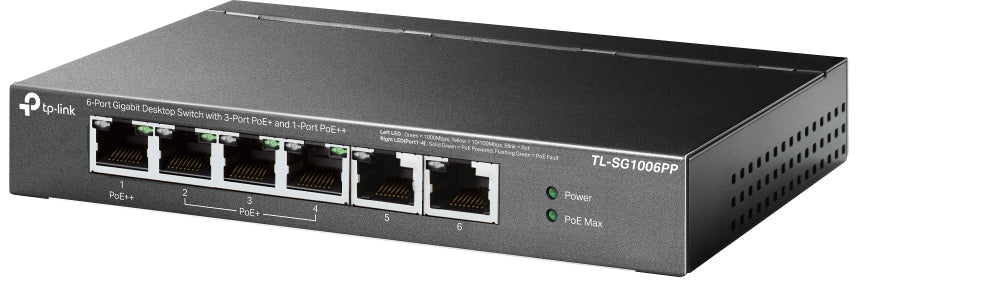

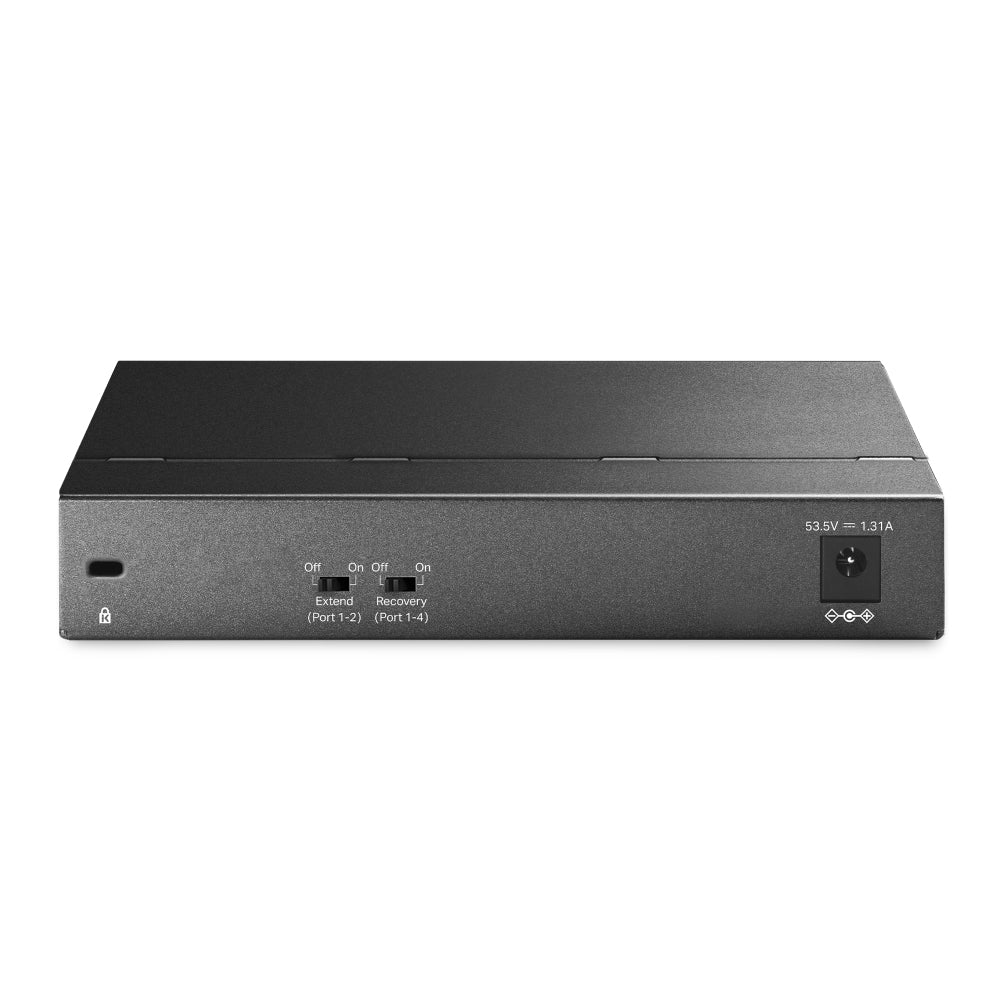

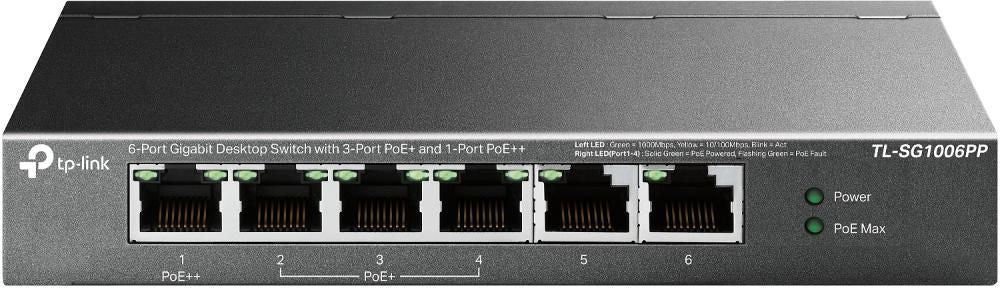

Omada TL-SG1006PP 6-Port Gigabit Desktop Network Switch with 4-Port PoE, Unmanaged
Omada TL-SG1006PP 6-Port Gigabit Desktop Network Switch with 4-Port PoE, Unmanaged
6-Port Gigabit Switch | 4 PoE Ports with 64W Budget | Fanless Silent Operation | Certified FCC, CE, RoHS
Regular price
£57.26 GBP
(incl. VAT)
Regular price
Sale price
£57.26 GBP
(incl. VAT)
Unit price
/
per
Shipping calculated at checkout.
In stock: 5
Couldn't load pickup availability
- Trusted by Thousands
- Order with confidence
- Fully tracked shipping
Product Description:
The Omada TL-SG1006PP is a high-performance 6-port Gigabit desktop network switch, designed to deliver reliable connectivity and efficient power distribution. With four Power over Ethernet (PoE) ports, including one PoE++ and three PoE+ ports, this unmanaged switch is perfect for powering network devices while ensuring fast data transfer. Its fanless, silent operation and robust safety certifications make it an excellent choice for both home and business environments.
Key Features:
- 6 x Gigabit Ethernet (10/100/1000 Mbps) RJ-45 ports

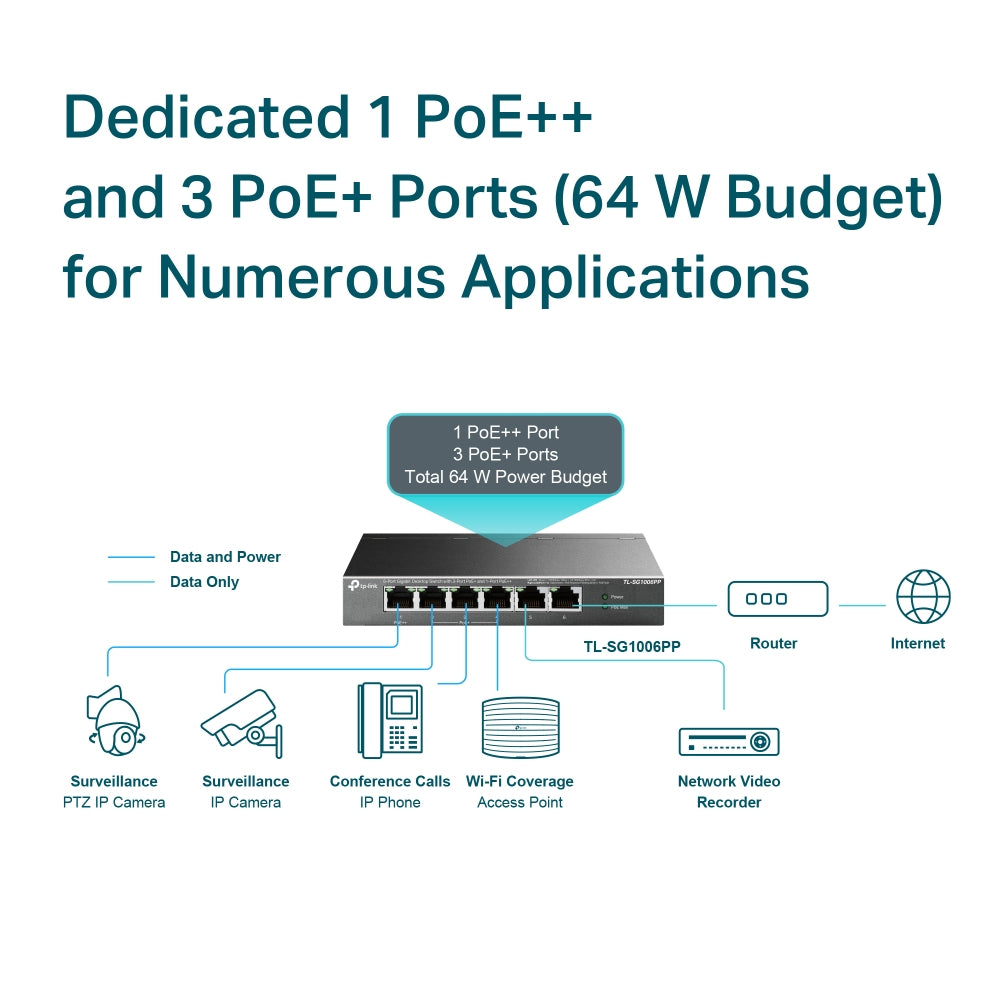

- 4 x PoE ports (1 x PoE++, 3 x PoE+), total PoE budget: 64 W
- Fanless, silent operation
- Plug-and-play installation
- Certified: FCC, CE, RoHS
What's Included:
- Omada TL-SG1006PP Network Switch
- Power supply
- Quick start guide
- Box packaging
Key Features:
- 6 x Gigabit Ethernet (10/100/1000 Mbps) RJ-45 ports
- 4 x PoE ports (1 x PoE++, 3 x PoE+), total PoE budget: 64 W
- Fanless, silent operation
- Plug-and-play installation
- Certified: FCC, CE, RoHS
What's Included:
- Omada TL-SG1006PP Network Switch
- Power supply
- Quick start guide
- Box packaging

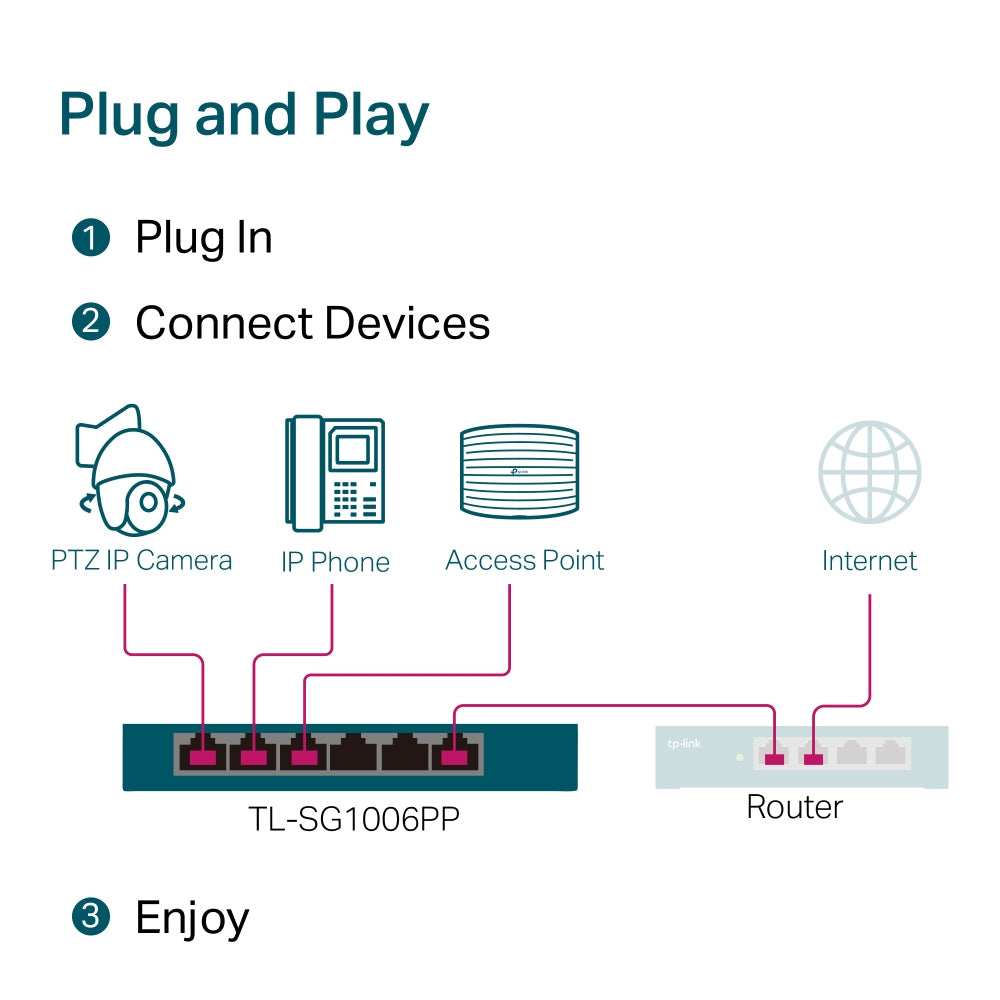

Usage:
Connect up to six network devices using the Gigabit Ethernet ports. Power compatible devices via the four PoE ports without extra cables. Install easily with plug-and-play setup and place in quiet environments thanks to fanless design.
Key Product Details:
MPN: TL-SG1006PP
EAN: 4895252500325
Manufacturer: Omada
Condition: New
Technical Specifications:
| Depth | 101 mm |
|---|---|
| Width | 158 mm |
| Height | 25 mm |
| Fanless | Yes |
| Stackable | Yes |
| Switch type | Unmanaged |
| Package type | Box |
| Power source | DC/PoE |
| Certification | FCC, CE, RoHS |
| IGMP snooping | Yes |
| Input current | 1.31 A |
| Rack mounting | Yes |
| Auto MDI/MDI-X | Yes |
| LED indicators | Yes |
| Product colour | Grey |
| Forwarding rate | 8.928 Mpps |
| Auto-negotiation | Yes |
| DC input voltage | 53.5 V |
| Heat dissipation | 16.2 BTU/h |
| MAC address table | 4000 entries |
| Quick start guide | Yes |
| Store-and-forward | Yes |
| Switching capacity | 12 Gbit/s |
| Flow control support | Yes |
| Networking standards | IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6 |
| Power supply included | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Power consumption (max) | 71.46 W |
| Power over Ethernet (PoE) | Yes |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Power consumption (typical) | 4.75 W |
| Storage relative humidity (H-H) | 5 - 90% |
| MAC address auto-aging supported | Yes |
| Quality of Service (QoS) support | Yes |
| Operating relative humidity (H-H) | 10 - 90% |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| MAC address auto-learning supported | Yes |
| Total Power over Ethernet (PoE) budget | 64 W |
| Power over Ethernet (PoE) ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 6 |
