Omada EAP225 Wireless Access Point – Dual Band 1350 Mbit/s PoE White
Omada EAP225 Wireless Access Point – Dual Band 1350 Mbit/s PoE White
Dual band wireless access point | PoE support | Advanced security features | CE, FCC, RoHS certified
Regular price
£81.62 GBP
(incl. VAT)
Regular price
Sale price
£81.62 GBP
(incl. VAT)
Unit price
/
per
Shipping calculated at checkout.
In stock: 7
Couldn't load pickup availability
- Trusted by Thousands
- Order with confidence
- Fully tracked shipping
Product Description:
The Omada EAP225 delivers robust wireless connectivity with dual-band speeds and advanced security features, making it an excellent choice for both home and business networks. With Power over Ethernet (PoE) support and flexible mounting options, installation is straightforward and adaptable to your needs. Certified to CE, FCC, and RoHS standards, this access point offers reliable performance and peace of mind.
Key Features:
- Dual band Wi-Fi: 2.4 GHz (450 Mbit/s) & 5 GHz (867 Mbit/s)
- Power over Ethernet (PoE) support
- Advanced security: WPA/WPA2, MAC filtering, multiple SSIDs
- Flexible mounting: Ceiling or wall
- Certified: CE, FCC, RoHS

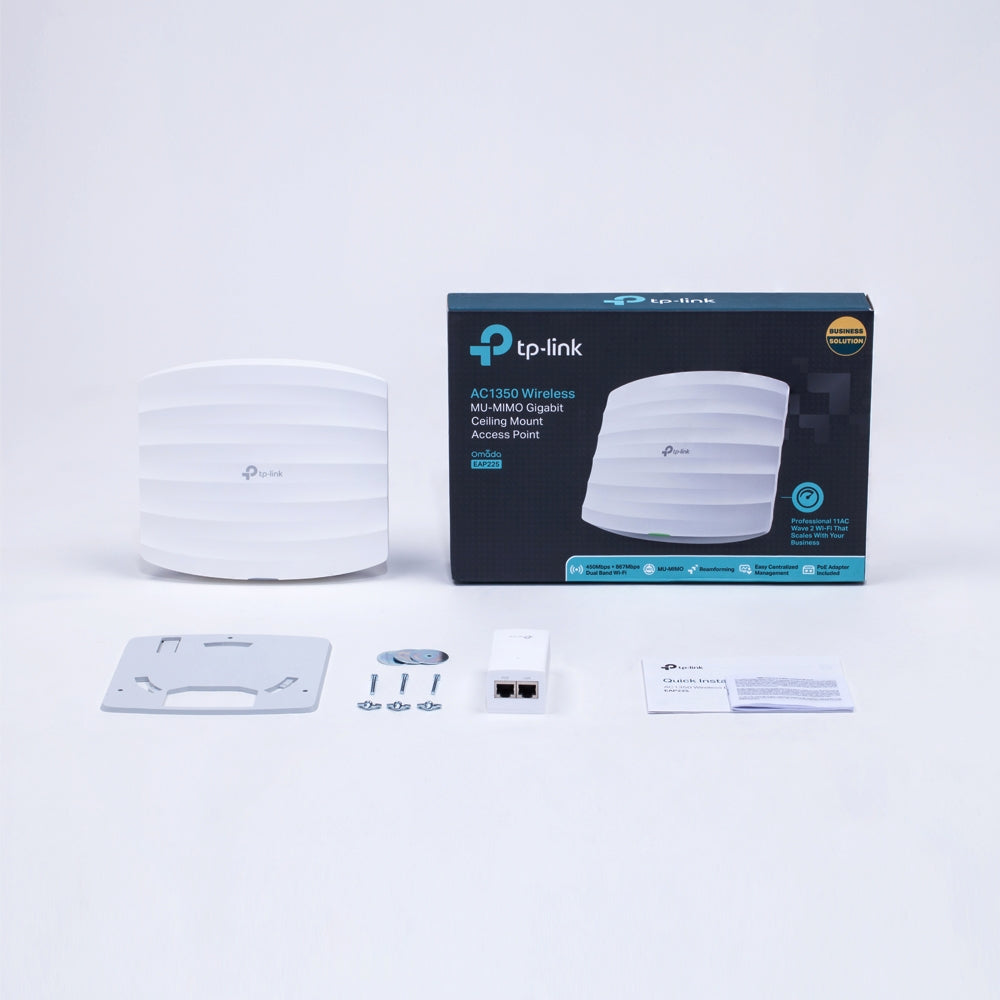

What's Included:
- Omada EAP225 Access Point
- AC adapter
- PoE adapter
- Mounting kit
- Quick start guide
Key Features:
- Dual band Wi-Fi: 2.4 GHz (450 Mbit/s) & 5 GHz (867 Mbit/s)
- Power over Ethernet (PoE) support
- Advanced security: WPA/WPA2, MAC filtering, multiple SSIDs
- Flexible mounting: Ceiling or wall
- Certified: CE, FCC, RoHS
What's Included:
- Omada EAP225 Access Point
- AC adapter
- PoE adapter
- Mounting kit
- Quick start guide
Usage:
Install the access point on a ceiling or wall using the included mounting kit. Connect to your network via Ethernet with PoE support for power and data. Manage settings through the web-based interface for secure and efficient network control.
Key Product Details:
MPN: EAP225
EAN: 6935364096915
Manufacturer: Omada
Condition: New
Technical Specifications:
| MIMO | Yes |
|---|---|
| 5 GHz | Yes |
| Depth | 181.5 mm |
| Width | 205.5 mm |
| Height | 37.1 mm |
| Syslog | Yes |
| 2.4 GHz | Yes |
| MIMO type | Multi User MIMO |
| Placement | Ceiling, Wall |
| DC-in jack | Yes |
| BeamForming | Yes |
| Antenna type | Internal |
| Mounting kit | Yes |
| Package type | Box |
| Reset button | Yes |
| VLAN support | Yes |
| Band steering | Yes |
| On/off switch | Yes |
| Package depth | 340 mm |
| Package width | 228 mm |
| Rate limiting | Yes |
| LED indicators | Power, WLAN |
| Output current | 1.5 A |
| Output voltage | 12 V |
| Package height | 65 mm |
| Package weight | 910 g |
| Product colour | White |
| Cable lock slot | Yes |
| Antenna features | Integrated antenna |
| Antennas quantity | 5 |
| Quantity per pack | 1 pc(s) |
| Quick start guide | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| AC adapter included | Yes |
| Security algorithms | 64-bit WEP, 128-bit WEP, 152-bit WEP, SSID, WPA, WPA-PSK, WPA2, WPA2-PSK |
| Cable lock slot type | Kensington |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af |
| PoE adapter included | Yes |
| Virtual LAN features | VLAN mapping |
| Web-based management | Yes |
| MAC address filtering | Yes |
| Airtime Fairness (ATF) | Yes |
| Antenna direction type | Omni-directional |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Transmitting power (CE) | 23 dBm |
| Antenna gain level (max) | 5 dBi |
| Number of SSID supported | 16 |
| Transmitting power (FCC) | 24 dBm |
| Access Control List (ACL) | Yes |
| Power over Ethernet (PoE) | Yes |
| Storage temperature (T-T) | -40 - 70 °C |
| Sustainability compliance | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Maximum data transfer rate | 1350 Mbit/s |
| Operating temperature (T-T) | 0 - 40 °C |
| Power consumption (typical) | 10.15 W |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Storage relative humidity (H-H) | 5 - 90% |
| Quality of Service (QoS) support | Yes |
| Operating relative humidity (H-H) | 10 - 90% |
| Maximum data transfer rate (5 GHz) | 867 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 450 Mbit/s |
| Service Set Identifier (SSID) features | Multiple SSIDs |
| Power over Ethernet (PoE) type supported | Passive PoE |
