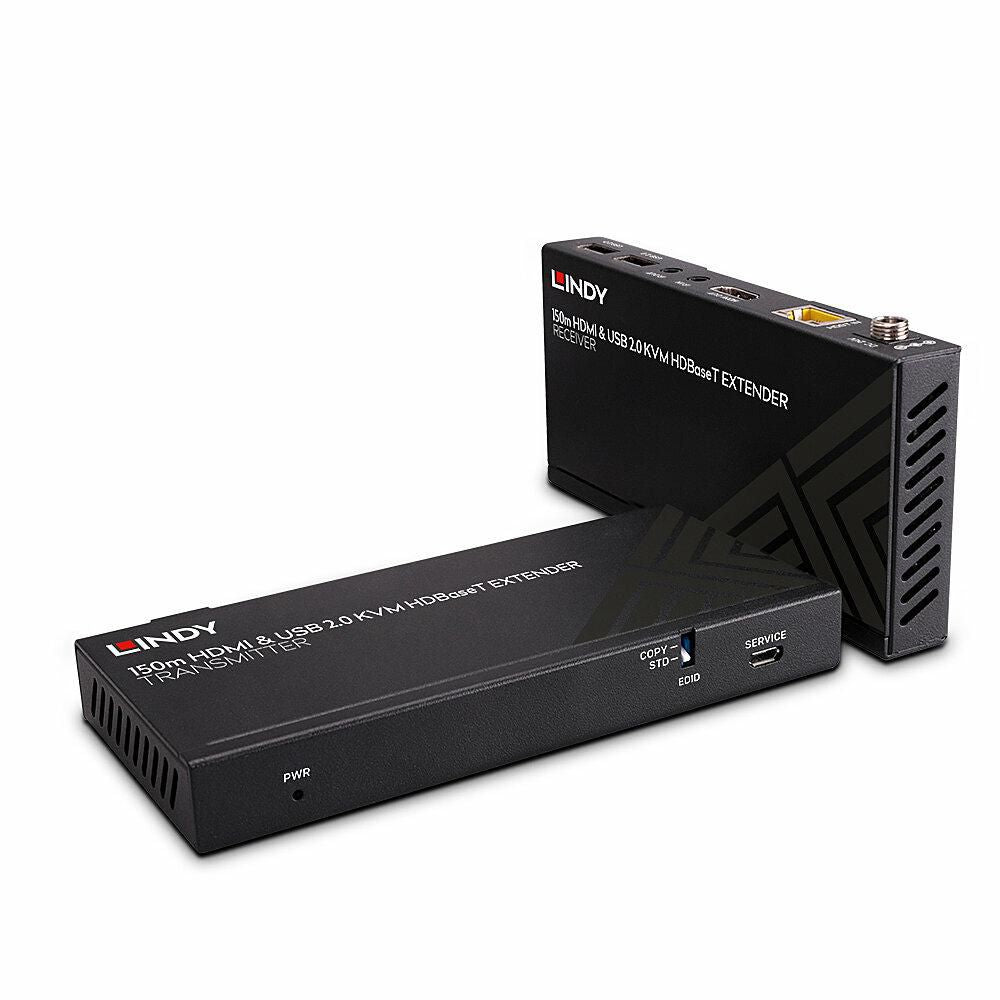

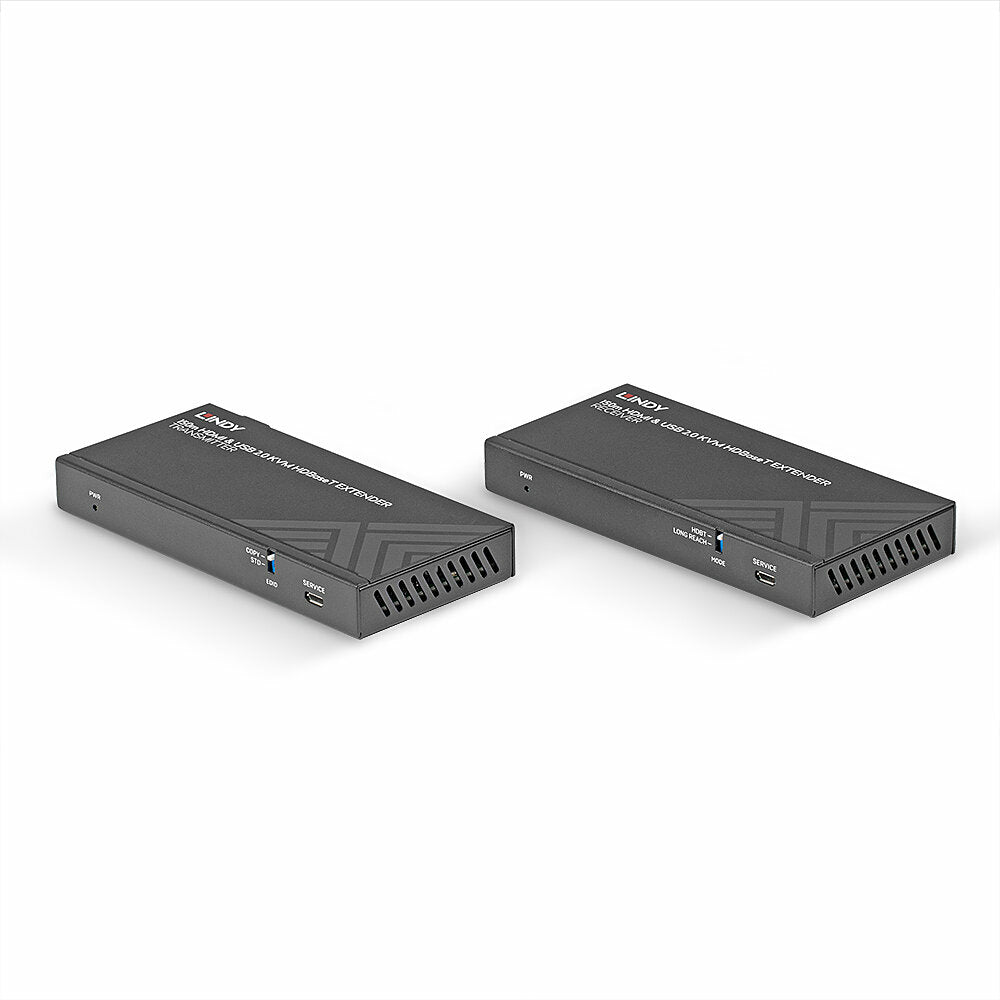

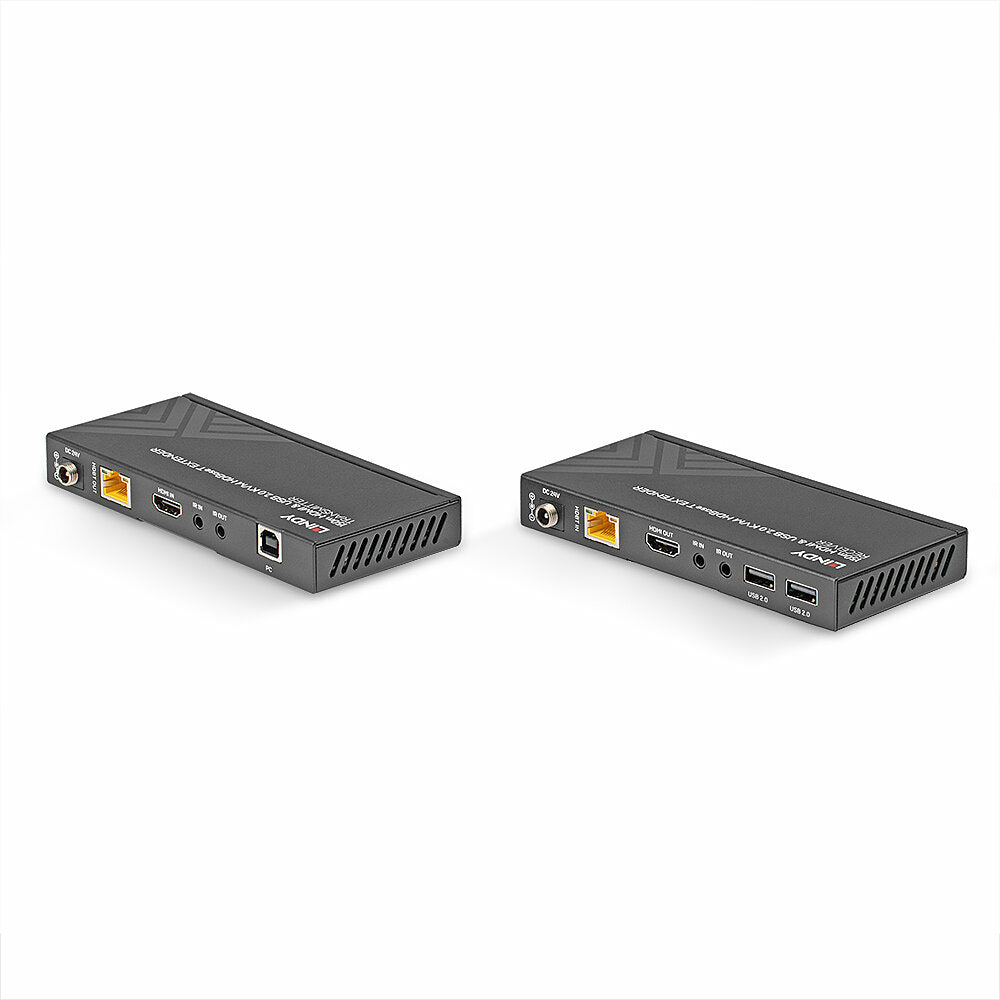

Lindy 39384 KVM Extender – 150m Cat.6 HDMI 4K60 USB 2.0 IR HDBaseT
Lindy 39384 KVM Extender – 150m Cat.6 HDMI 4K60 USB 2.0 IR HDBaseT
KVM Extender | 4K60 HDMI & USB 2.0 | 150m Cat.6 Range | Certified Compliance
Regular price
£368.33 GBP
(incl. VAT)
Regular price
Sale price
£368.33 GBP
(incl. VAT)
Unit price
/
per
Shipping calculated at checkout.
In stock: 9
Couldn't load pickup availability
- Trusted by Thousands
- Order with confidence
- Fully tracked shipping
Product Description:
The Lindy 39384 KVM Extender is a professional-grade solution for extending HDMI 4K60 video, USB 2.0, and IR signals up to 150 metres over Cat.6 cable. With robust metal construction, advanced HDBaseT technology, and comprehensive certification, it is ideal for demanding AV and IT environments.
Key Features:
- HDMI 2.0 support with 4K@60Hz 4:4:4 and HDR
- USB 2.0 and bi-directional IR control
- Power over Cable (PoC) for simplified installation
- Durable metal housing in black
- Certified to CE, FCC, REACH, RoHS, UKCA
What's Included:
- Transmitter & receiver units
- IR and USB Type-A to Type-B cables
- Power plugs (AU, EU, UK, US)
- Screws
- User manual
Warranty and Certification:
- 2-year warranty
- Certified to CE, FCC, REACH, RoHS, UKCA
Key Features:
- HDMI 2.0 support with 4K@60Hz 4:4:4 and HDR
- USB 2.0 and bi-directional IR control
- Power over Cable (PoC) for simplified installation
- Durable metal housing in black
- Certified to CE, FCC, REACH, RoHS, UKCA
What's Included:
- Transmitter & receiver units
- IR and USB Type-A to Type-B cables
- Power plugs (AU, EU, UK, US)
- Screws
- User manual
Warranty and Certification:
- 2-year warranty
- Certified to CE, FCC, REACH, RoHS, UKCA
Usage:
Connect the transmitter and receiver units using Cat.6 cable. Plug in power on one side to enable Power over Cable. Use HDMI ports for video and USB ports for peripheral control. Operate IR signals bi-directionally for remote device management.
Key Product Details:
MPN: 39384
EAN: 4002888393843
Manufacturer: Lindy
Condition: New
Technical Specifications:
| HDCP | Yes |
|---|---|
| Type | Transmitter & receiver |
| Manual | Yes |
| Material | Metal |
| Bandwidth | 18 Gbit/s |
| DC-in jack | Yes |
| Colour depth | 12 bit |
| HDCP version | 2.2 |
| HDMI version | 2.0 |
| Package depth | 185 mm |
| Package width | 245 mm |
| Package height | 75 mm |
| Package weight | 1.02 kg |
| Product colour | Black |
| Receiver depth | 6.5 cm |
| Receiver width | 14 cm |
| Cables included | IR, USB Type-A to USB Type-B |
| Receiver height | 1.8 cm |
| Receiver weight | 790 g |
| Screws included | Yes |
| AC input voltage | 100 - 240 V |
| Remote (IR) input | 2 |
| Transmitter depth | 6.5 cm |
| Transmitter width | 14 cm |
| AC input frequency | 50 - 60 Hz |
| Remote (IR) output | 2 |
| Transmitter height | 1.8 cm |
| Transmitter weight | 790 g |
| Maximum refresh rate | 60 Hz |
| Cable types supported | Cat6 |
| Supported resolutions | 3840 x 2160 1920 x 1080 |
| Compliance certificates | CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA |
| Connectivity technology | Wired |
| Included power plug types | AU, EU, UK, US |
| Maximum transfer distance | 150 m |
| Storage temperature (T-T) | -20 - 60 °C |
| Sustainability compliance | Yes |
| Maximum digital resolution | 3840 x 2160 pixels |
| Operating temperature (T-T) | 0 - 40 °C |
| Transmitter local video port | Yes |
| Infrared (IR) frequency range | 20 - 60 kHz |
| Receiver local video port type | HDMI |
| RJ-45 ports quantity (receiver) | 1 |
| Operating relative humidity (H-H) | 20 - 90% |
| Receiver Micro-USB ports quantity | 1 |
| Transmitter local video port type | HDMI |
| Power consumption (receiver) (max) | 13.2 W |
| RJ-45 ports quantity (transmitter) | 1 |
| Receiver USB Type-A ports quantity | 2 |
| Transmitter Micro-USB ports quantity | 1 |
| Power consumption (transmitter) (max) | 13.2 W |
| Transmitter USB Type-B ports quantity | 1 |
| Extended display identification data (EDID) | Yes |
