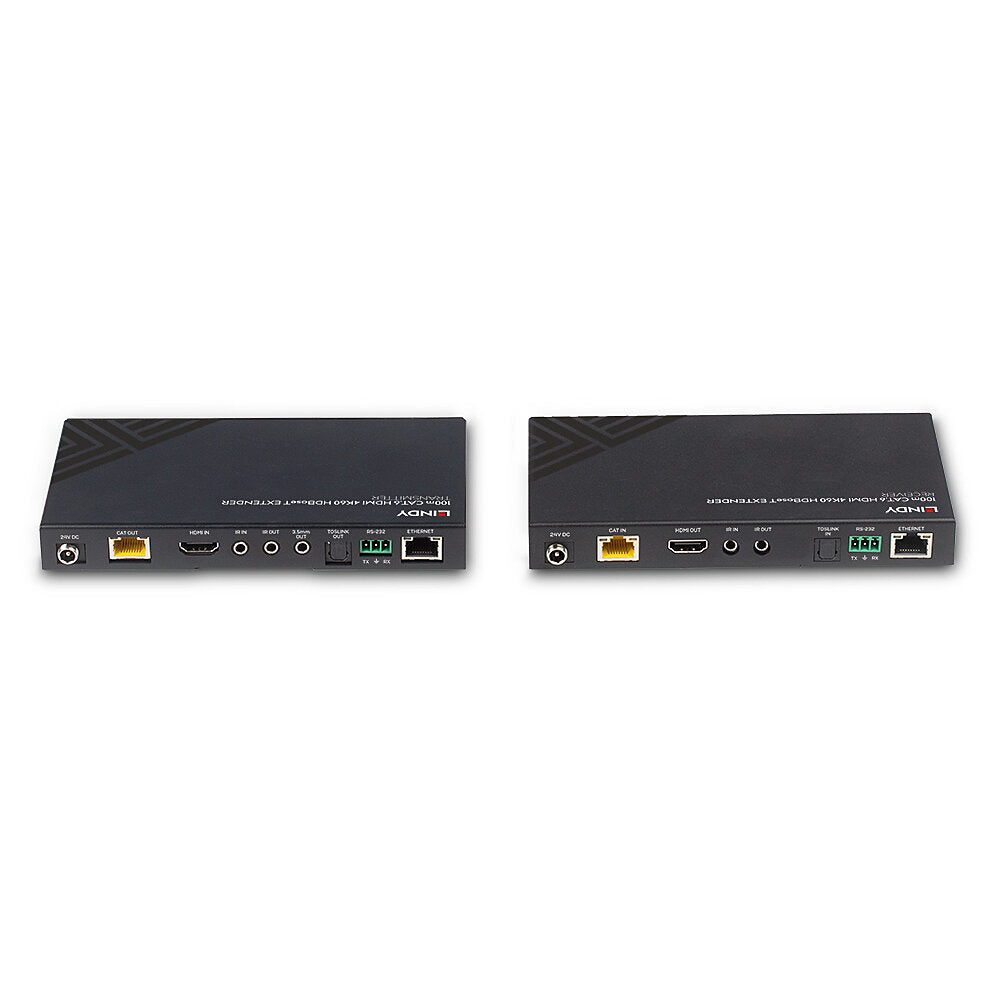

Lindy 38340 KVM Extender – 100m Cat.6 HDMI 4K60 Audio IR RS-232 HDBaseT
Lindy 38340 KVM Extender – 100m Cat.6 HDMI 4K60 Audio IR RS-232 HDBaseT
HDMI 4K60 video extension | 100m Cat.6 transmission | Power over Cable (PoC) | Certified and robust design
Regular price
£411.02 GBP
(incl. VAT)
Regular price
Sale price
£411.02 GBP
(incl. VAT)
Unit price
/
per
Shipping calculated at checkout.
In stock: 10
Couldn't load pickup availability
- Trusted by Thousands
- Order with confidence
- Fully tracked shipping
Product Description:
The Lindy 38340 KVM Extender is a professional-grade solution for extending HDMI 4K60 video, audio, IR, and RS-232 signals up to 100 metres over Cat.6 cable. This transmitter and receiver set is ideal for AV installations requiring high performance, advanced control, and reliable operation. With Power over Cable (PoC), only one power supply is needed, making installation straightforward. Certified to CE, UKCA, FCC, RoHS, and REACH standards, and supported by a 2-year warranty.
Key Features:
- Supports HDMI 4K60 (3840 x 2160 @ 60Hz)
- 100m transmission distance over Cat.6
- Audio, IR, RS-232, and Ethernet pass-through
- Power over Cable (PoC) for simplified power
- Robust metal construction
What's Included:
- Lindy 38340 KVM Extender (Transmitter & Receiver)
- AC Adapter
- User Manual
Warranty and Certification:
- 2-year warranty
- CE, UKCA, FCC, RoHS, REACH certified
Key Features:
- Supports HDMI 4K60 (3840 x 2160 @ 60Hz)
- 100m transmission distance over Cat.6
- Audio, IR, RS-232, and Ethernet pass-through
- Power over Cable (PoC) for simplified power
- Robust metal construction
What's Included:
- Lindy 38340 KVM Extender (Transmitter & Receiver)
- AC Adapter
- User Manual
Warranty and Certification:
- 2-year warranty
- CE, UKCA, FCC, RoHS, REACH certified
Usage:
Connect the transmitter to your HDMI source and the receiver to your display. Use a Cat.6 cable to link both units up to 100 metres apart. Power the system via a single power supply using PoC. Control audio, IR, and RS-232 signals through the extender for integrated AV management.
Key Product Details:
MPN: 38340
EAN: 4002888383400
Manufacturer: Lindy
Condition: New
Technical Specifications:
| Type | Transmitter & receiver |
|---|---|
| Manual | Yes |
| Weight | 770 g |
| Material | Metal |
| Certification | CE, UKCA, FCC, RoHS, REACH |
| Package depth | 70 mm |
| Package width | 265 mm |
| USB port type | USB Type-A |
| Package height | 210 mm |
| Package weight | 1.28 kg |
| Product colour | Black |
| Receiver depth | 9 cm |
| Receiver width | 16.3 cm |
| Receiver height | 1.6 cm |
| Transmitter depth | 9 cm |
| Transmitter width | 16.3 cm |
| Transmitter height | 1.6 cm |
| Maximum refresh rate | 60 Hz |
| Cable types supported | Cat6 |
| USB 2.0 ports quantity | 2 |
| Connectivity technology | Wired |
| AC adapter output current | 1 A |
| AC adapter output voltage | 24 V |
| Maximum transfer distance | 100 m |
| Storage temperature (T-T) | -20 - 60 °C |
| Maximum digital resolution | 3840 x 2160 pixels |
| Operating temperature (T-T) | 0 - 40 °C |
| Transmitter video port type | HDMI |
| Receiver local video port type | HDMI |
| RJ-45 ports quantity (receiver) | 1 |
| Operating relative humidity (H-H) | 20 - 90% |
| RJ-45 ports quantity (transmitter) | 1 |
