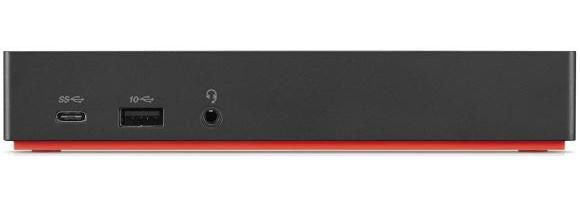

Lenovo 40AS0090DK USB-C Dock Gen 2 – 4K Ultra HD, 90W, Black
Lenovo 40AS0090DK USB-C Dock Gen 2 – 4K Ultra HD, 90W, Black
USB-C Docking Station | Triple Display Support | 10Gbps Data Transfer | Certified Safety
Regular price
£290.61 GBP
(incl. VAT)
Regular price
Sale price
£290.61 GBP
(incl. VAT)
Unit price
/
per
Shipping calculated at checkout.
In stock: 21
Couldn't load pickup availability
- Trusted by Thousands
- Order with confidence
- Fully tracked shipping
Product Description:
The Lenovo 40AS0090DK USB-C Dock Gen 2 is designed to transform your workspace with powerful connectivity and versatile display options. Effortlessly connect multiple devices, enjoy ultra-fast data transfer, and experience vivid 4K Ultra HD visuals. With robust safety certifications and a comprehensive warranty, this dock is the ideal centrepiece for any professional setup.
Key Features:
- Supports up to 3 displays, including 1 x 4K@60Hz

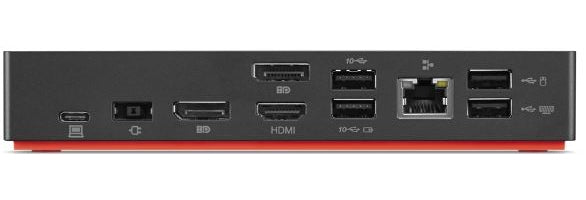

- Multiple ports: 2 x DisplayPort, 1 x HDMI 2.0, 3 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0, 1 x USB-C Gen 1, 1 x USB-C Gen 2
- Gigabit Ethernet LAN (RJ-45)
- Data transfer rate up to 10 Gbit/s
- Plug and Play functionality
What's Included:
- Lenovo 40AS0090DK USB-C Dock Gen 2
- 90W AC adapter
- USB Type-C cable
- User manual
Warranty and Certification:
Includes manufacturer warranty. Certified CE, FCC, RoHS, and more.
Key Features:
- Supports up to 3 displays, including 1 x 4K@60Hz
- Multiple ports: 2 x DisplayPort, 1 x HDMI 2.0, 3 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0, 1 x USB-C Gen 1, 1 x USB-C Gen 2
- Gigabit Ethernet LAN (RJ-45)
- Data transfer rate up to 10 Gbit/s
- Plug and Play functionality
What's Included:
- Lenovo 40AS0090DK USB-C Dock Gen 2
- 90W AC adapter
- USB Type-C cable
- User manual
Warranty and Certification:
Includes manufacturer warranty. Certified CE, FCC, RoHS, and more.
Usage:
Connect the dock to your laptop via USB-C. Attach up to three monitors using DisplayPort and HDMI ports. Plug in peripherals through USB-A and USB-C ports. Use the Ethernet port for a stable wired network connection.
Key Product Details:
MPN: 40AS0090DK
EAN: 193124916422
Manufacturer: Lenovo
Condition: New
Technical Specifications:
| Depth | 80 mm |
|---|---|
| Width | 171 mm |
| Height | 30.8 mm |
| Manual | Yes |
| Weight | 325 g |
| HD type | 4K Ultra HD |
| Ethernet LAN | Yes |
| HDMI version | 2.0 |
| Power supply | 90 W |
| Certification | FCC/ICES, CE, KCC, RCM, BSMI, VCCI, CB, cULus, EAC, TUV- Mark, Serbia Kvalitet, LoA, Israel SII, Ukraine DoC, NOM |
| Microphone in | No |
| Package depth | 158 mm |
| Package width | 210 mm |
| Plug and Play | Yes |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Package height | 75 mm |
| Package weight | 960 g |
| Product colour | Black |
| Cable lock slot | Yes |
| Cables included | AC, USB Type-C |
| AC input voltage | 100 - 240 V |
| Headphone outputs | 0 |
| Power source type | DC |
| Quantity per pack | 1 pc(s) |
| Wake-on-LAN ready | Yes |
| AC input frequency | 50 - 60 Hz |
| Data transfer rate | 10 Gbit/s |
| AC adapter included | Yes |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 2 |
| Card reader integrated | No |
| Headphone connectivity | 3.5 mm |
| USB 2.0 ports quantity | 2 |
| Connectivity technology | Wired |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Combo headphone/mic port | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Maximum digital resolution | 3840 x 2160 pixels |
| Operating temperature (T-T) | 0 - 35 °C |
| Number of displays supported | 3 |
| Operating relative humidity (H-H) | 20 - 95% |
| Windows operating systems supported | Windows 10, Windows 7 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
