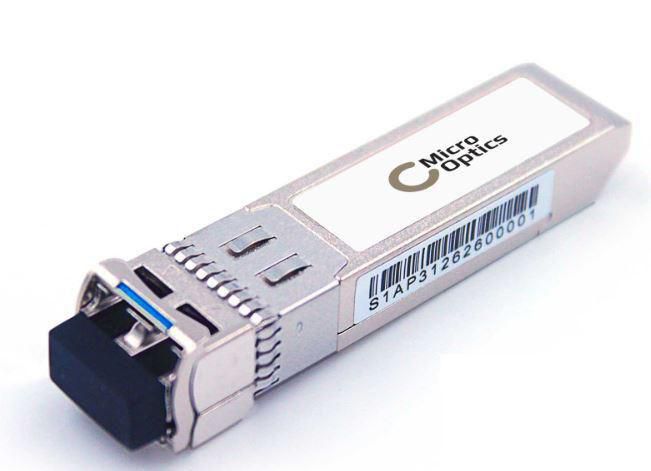

Lanview MO-UF-SM-1G-LH Network Transceiver Module – SFP 1000 Mbit/s 1310nm
Lanview MO-UF-SM-1G-LH Network Transceiver Module – SFP 1000 Mbit/s 1310nm
SFP transceiver module | 1000 Mbit/s data transfer | Metal housing | RoHS and MSA certified
Regular price
£21.91 GBP
(incl. VAT)
Regular price
Sale price
£21.91 GBP
(incl. VAT)
Unit price
/
per
Shipping calculated at checkout.
In stock: 47
Couldn't load pickup availability
- Trusted by Thousands
- Order with confidence
- Fully tracked shipping
Product Description:
The Lanview MO-UF-SM-1G-LH SFP transceiver module delivers high-speed, long-distance fibre optic connectivity for professional networking needs. With a robust metal housing and support for up to 1000 Mbit/s data transfer, this module is ideal for reliable and efficient network expansion.
Key Features:
- High-speed 1000 Mbit/s data transfer
- Supports single-mode and multi-mode fibre
- Durable metal construction
- Plug and play installation
- RoHS and MSA certified
What's Included:
- 1 x Lanview MO-UF-SM-1G-LH SFP transceiver module
Warranty and Certification:
Includes manufacturer warranty. RoHS and MSA certified.
Key Features:
- High-speed 1000 Mbit/s data transfer
- Supports single-mode and multi-mode fibre
- Durable metal construction
- Plug and play installation
- RoHS and MSA certified
What's Included:
- 1 x Lanview MO-UF-SM-1G-LH SFP transceiver module
Warranty and Certification:
Includes manufacturer warranty. RoHS and MSA certified.
Usage:
Insert the SFP transceiver into the compatible network device slot. Connect the fibre optic cable to the LC connector. Ensure proper alignment and power on the device for automatic recognition and operation.
Key Product Details:
MPN: MO-UF-SM-1G-LH
EAN: 5704174860112
Manufacturer: Lanview
Condition: New
Technical Specifications:
| Depth | 56 mm |
|---|---|
| Width | 14 mm |
| Height | 8.5 mm |
| Weight | 10 g |
| Wavelength | 1310 nm |
| Form factor | SFP |
| Certification | MSA |
| Package depth | 100 mm |
| Package width | 60 mm |
| Plug and Play | Yes |
| Interface type | SFP |
| Package height | 30 mm |
| Package weight | 15 g |
| Product colour | Silver |
| Easy to install | Yes |
| Housing material | Metal |
| Quantity per pack | 1 pc(s) |
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC |
| Compliance certificates | RoHS |
| SFP transceiver standard | LH |
| Maximum transfer distance | 20000 m |
| Storage temperature (T-T) | -40 - 85 °C |
| Maximum data transfer rate | 1000 Mbit/s |
| Operating temperature (T-T) | 0 - 70 °C |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | 0 °C |
| Multi-mode fiber (MMF) supported | Yes |
| Single-mode fiber (SMF) supported | Yes |
| Fiber cable diameters supported (core/cladding) | 9/125,9/128 µm |
