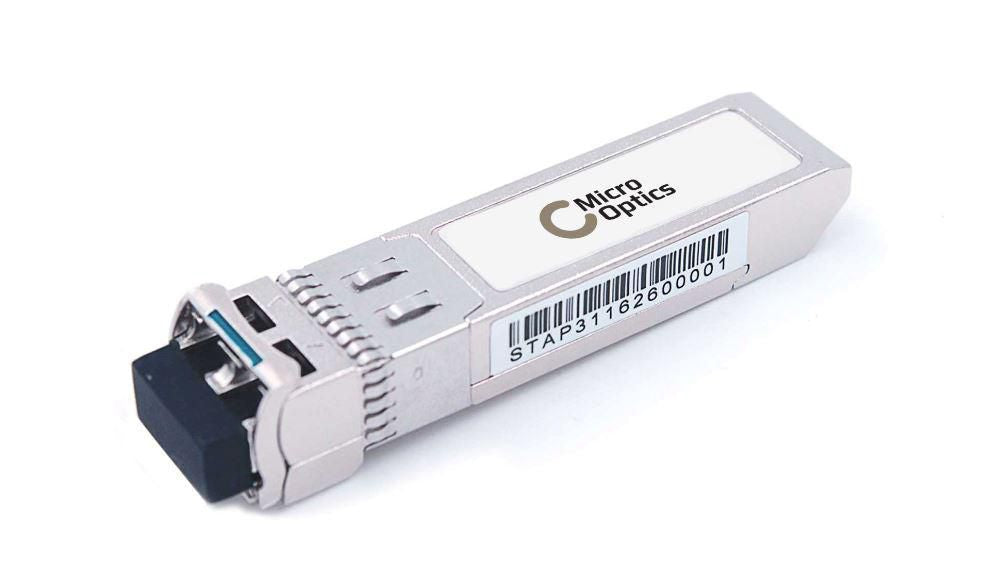

Lanview MO-P-S311X2-3CDL10 SFP+ Network Transceiver Module – 10Gbps 1310nm 10km LC
Lanview MO-P-S311X2-3CDL10 SFP+ Network Transceiver Module – 10Gbps 1310nm 10km LC
10Gbps data rate | Single-mode fibre 10km | LC connector | MSA certified
Regular price
£47.37 GBP
(incl. VAT)
Regular price
Sale price
£47.37 GBP
(incl. VAT)
Unit price
/
per
Shipping calculated at checkout.
In stock: 229
Couldn't load pickup availability
- Trusted by Thousands
- Order with confidence
- Fully tracked shipping
Product Description:
The Lanview MO-P-S311X2-3CDL10 SFP+ network transceiver module provides high-speed 10Gbps fibre optic connectivity, ideal for long-distance single-mode fibre applications. With a compact LC connector and support for up to 10km transmission, this MSA-certified module ensures reliable and efficient network performance.
Key Features:
- 10Gbps data transfer rate
- Single-mode fibre (SMF) support up to 10km
- LC connector for secure connections
- Hot-plug support for easy installation
What's Included:
- 1 x Lanview MO-P-S311X2-3CDL10 SFP+ transceiver module
Warranty and Certification:
- MSA certified for compliance and safety
Key Features:
- 10Gbps data transfer rate
- Single-mode fibre (SMF) support up to 10km
- LC connector for secure connections
- Hot-plug support for easy installation
What's Included:
- 1 x Lanview MO-P-S311X2-3CDL10 SFP+ transceiver module
Warranty and Certification:
- MSA certified for compliance and safety
Usage:
Insert the transceiver module into an SFP+ port on your network device. Connect the LC fibre optic cable to the module. Ensure proper alignment for secure connection. Use for long-distance single-mode fibre network links up to 10km.
Key Product Details:
MPN: MO-P-S311X2-3CDL10
EAN: 5711045425219
Manufacturer: Lanview
Condition: New
Technical Specifications:
| Depth | 56.5 mm |
|---|---|
| Width | 13.4 mm |
| Height | 8.5 mm |
| Wavelength | 1310 nm |
| Certification | MSA |
| Auto MDI/MDI-X | Yes |
| Interface type | SFP+ |
| Hot-Plug support | Yes |
| Cabling technology | 10GBASE-LR |
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC |
| SFP transceiver standard | LR |
| Maximum transfer distance | 10000 m |
| Storage temperature (T-T) | -40 - 85 °C |
| Maximum data transfer rate | 10000 Mbit/s |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage relative humidity (H-H) | 10 - 85% |
| Operating relative humidity (H-H) | 10 - 80% |
| Single-mode fiber (SMF) supported | Yes |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
