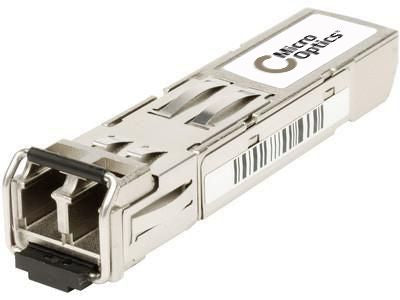

Lanview MO-L-S85123-3CLM SFP Transceiver – 1000 Mbit/s Fiber Optic 850nm
Lanview MO-L-S85123-3CLM SFP Transceiver – 1000 Mbit/s Fiber Optic 850nm
1 Gbps data transfer | Multi-mode fibre support | LC connector 850 nm | MSA certified
Regular price
£20.82 GBP
(incl. VAT)
Regular price
Sale price
£20.82 GBP
(incl. VAT)
Unit price
/
per
Shipping calculated at checkout.
In stock: 60
Couldn't load pickup availability
- Trusted by Thousands
- Order with confidence
- Fully tracked shipping
Product Description:
The Lanview MO-L-S85123-3CLM SFP transceiver provides robust and efficient fibre optic connectivity for modern networks. Engineered for high-speed data transfer and dependable operation, this module is ideal for professional networking applications requiring stable performance and easy installation.
Key Features:
- 1 Gbps maximum data transfer rate
- Multi-mode fibre (MMF) support
- LC connector, 850 nm wavelength
- Hot-plug support for convenient installation
- MSA certified for quality and safety
What's Included:
- 1 x Lanview MO-L-S85123-3CLM SFP Transceiver Module
Warranty and Certification:
- Backed by manufacturer warranty
- Fully compliant with UK/EU standards and certifications
Key Features:
- 1 Gbps maximum data transfer rate
- Multi-mode fibre (MMF) support
- LC connector, 850 nm wavelength
- Hot-plug support for convenient installation
- MSA certified for quality and safety
What's Included:
- 1 x Lanview MO-L-S85123-3CLM SFP Transceiver Module
Warranty and Certification:
- Backed by manufacturer warranty
- Fully compliant with UK/EU standards and certifications
Usage:
Insert the SFP transceiver into the SFP port of your network device. Connect the multi-mode fibre cable with LC connector to the module. Ensure the device is powered on to enable hot-plug functionality. Use in professional networking setups requiring stable fibre optic connections.
Key Product Details:
MPN: MO-L-S85123-3CLM
EAN: 5711045424618
Manufacturer: Lanview
Condition: New
Technical Specifications:
| Depth | 56.5 mm |
|---|---|
| Width | 13.4 mm |
| Height | 8.5 mm |
| Wavelength | 850 nm |
| Certification | MSA |
| Auto MDI/MDI-X | Yes |
| Interface type | SFP |
| Hot-Plug support | Yes |
| Cabling technology | 1000BASE-SX |
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC |
| SFP transceiver standard | SX |
| Maximum transfer distance | 550 m |
| Storage temperature (T-T) | -40 - 85 °C |
| Maximum data transfer rate | 1000 Mbit/s |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage relative humidity (H-H) | 10 - 85% |
| Multi-mode fiber (MMF) supported | Yes |
| Operating relative humidity (H-H) | 10 - 80% |
| Fiber cable diameters supported (core/cladding) | 50/125,62.5/125 µm |
