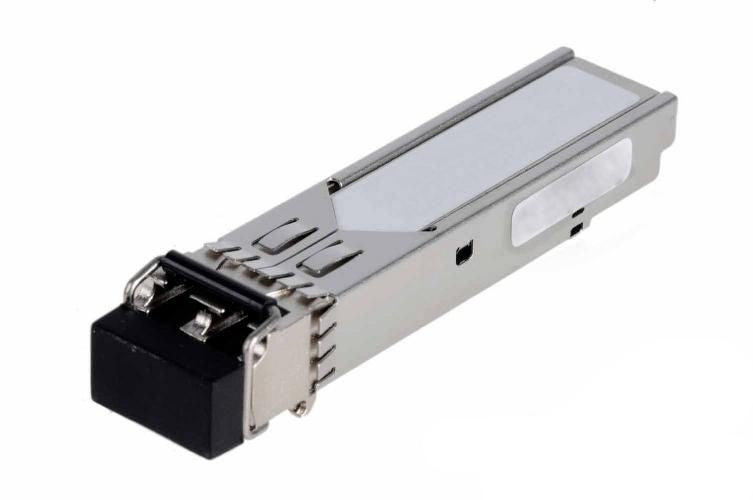

Lanview MO-G-S85123-3CLM SFP Transceiver Module – 1000 Mbit/s 850nm LC SX
Lanview MO-G-S85123-3CLM SFP Transceiver Module – 1000 Mbit/s 850nm LC SX
SFP transceiver module | 1 Gbps data rate | Multi-mode fibre support | MSA certified
Regular price
£25.97 GBP
(incl. VAT)
Regular price
Sale price
£25.97 GBP
(incl. VAT)
Unit price
/
per
Shipping calculated at checkout.
In stock: 43
Couldn't load pickup availability
- Trusted by Thousands
- Order with confidence
- Fully tracked shipping
Product Description:
The Lanview MO-G-S85123-3CLM SFP transceiver module provides high-speed, reliable fibre optic connectivity for professional networking environments. Engineered for seamless integration, this module supports 1 Gbps data rates over multi-mode fibre up to 550 metres, with robust LC connectors and hot-plug capability for straightforward installation.
Key Features:
- 1 Gbps data transfer rate
- Multi-mode fibre (MMF) support
- LC connector for secure connections
- Hot-plug support for easy installation
What's Included:
- 1 x Lanview MO-G-S85123-3CLM SFP Transceiver Module
Warranty and Certification:
- Manufacturer warranty included
- MSA certified for safety and compliance
Key Features:
- 1 Gbps data transfer rate
- Multi-mode fibre (MMF) support
- LC connector for secure connections
- Hot-plug support for easy installation
What's Included:
- 1 x Lanview MO-G-S85123-3CLM SFP Transceiver Module
Warranty and Certification:
- Manufacturer warranty included
- MSA certified for safety and compliance
Usage:
Insert the transceiver into an SFP port on your network device. Connect multi-mode fibre cables using the LC connector. Use hot-plug capability for easy installation without powering down equipment.
Key Product Details:
MPN: MO-G-S85123-3CLM
EAN: 5711045368363
Manufacturer: Lanview
Condition: New
Technical Specifications:
| Depth | 56.5 mm |
|---|---|
| Width | 13.4 mm |
| Height | 8.5 mm |
| Wavelength | 850 nm |
| Certification | MSA |
| Auto MDI/MDI-X | Yes |
| Interface type | SFP |
| Hot-Plug support | Yes |
| Cabling technology | 1000BASE-SX |
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC |
| SFP transceiver standard | SX |
| Maximum transfer distance | 550 m |
| Storage temperature (T-T) | -40 - 85 °C |
| Maximum data transfer rate | 1000 Mbit/s |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage relative humidity (H-H) | 10 - 85% |
| Multi-mode fiber (MMF) supported | Yes |
| Operating relative humidity (H-H) | 10 - 80% |
| Fiber cable diameters supported (core/cladding) | 50/125,62.5/125 µm |
