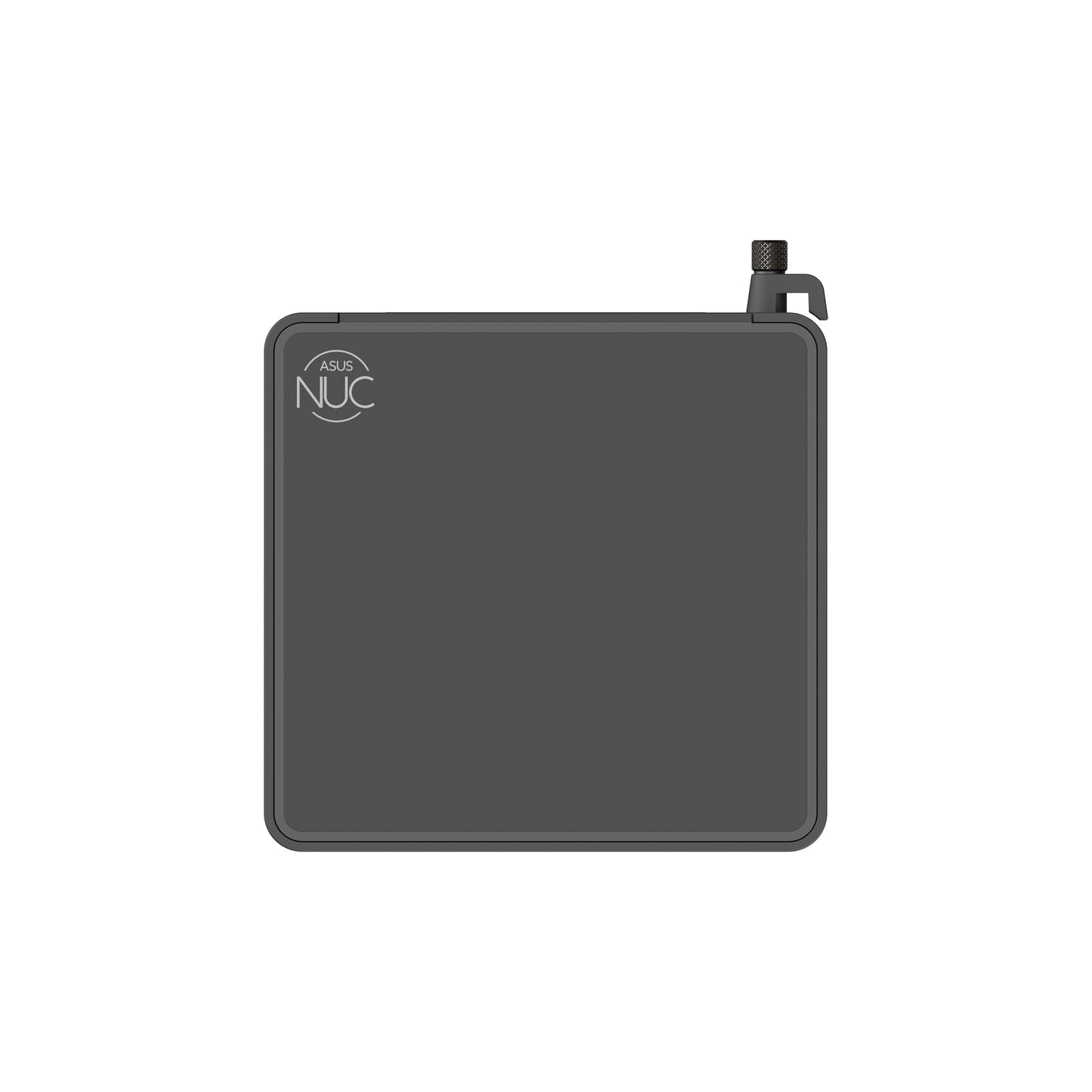

The Asus 90AR00R2-M00080 Mini PC Barebone offers exceptional performance in a compact form factor, making it ideal for modern workstations and demanding environments. Powered by the Intel Core Ultra 5 225H processor, this system supports high-speed DDR5 memory, advanced Intel Arc graphics, and ultra-fast M.2 SSD storage. With robust connectivity including Wi-Fi 7, Bluetooth 5.4, Thunderbolt 4, and HDMI 2.1, it is designed for flexibility and future-proof computing. The tool-less chassis and MIL-STD-810H certification ensure reliability and easy upgrades.
Key Features: - Intel Core Ultra 5 225H processor (14 cores, up to 4.9 GHz) - Dual SO-DIMM slots for DDR5-SDRAM (up to 96GB) - M.2 SSD support, up to 2000TB storage - Intel Arc 130T on-board graphics
What's Included: - Asus 90AR00R2-M00080 Mini PC Barebone - Power adapter (120W) - Documentation
Warranty and Certification: - 2-year manufacturer warranty - CE and RoHS compliant
Install DDR5 SO-DIMM memory modules into the dual slots. Connect your M.2 SSD for storage. Use HDMI or Thunderbolt ports to connect displays. Utilize Wi-Fi 7 and Bluetooth 5.4 for wireless networking.
Key Product Details:
MPN: 90AR00R2-M00080
EAN: 4711387949856
Manufacturer: Asus
Condition: New
Technical Specifications:
Depth
112 mm
Wi-Fi
Yes
Width
117 mm
Height
37 mm
Weight
500 g
Bluetooth
Yes
DC-in jack
Yes
Cooling type
Active
Ethernet LAN
Yes
HDMI version
2.1
Power supply
120 W
Product type
Mini PC barebone
On/off switch
Yes
LAN controller
Intel I226-V
Product colour
Black
Cable lock slot
Yes
Efficient cores
8
Memory channels
Dual-channel
Processor cache
18 MB
Processor cores
14
Processor model
225H
Wi-Fi standards
Wi-Fi 7 (802.11be)
Processor family
Intel Core Ultra 5
Bluetooth version
5.4
Memory slots type
SO-DIMM
Performance cores
4
Power supply type
External AC adapter
Processor threads
14
Built-in processor
Yes
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Built-in speaker(s)
No
HDMI ports quantity
2
Cable lock slot type
Kensington
Graphics card family
Intel
Processor generation
Intel Core Ultra (Series 2)
Number of memory slots
2
On-board graphics card
Yes
Processor manufacturer
Intel
Supported memory types
DDR5-SDRAM
USB 2.0 ports quantity
1
Storage drive interface
M.2
Maximum storage capacity
2000 TB
Storage drives installed
No
AC adapter output current
6.32 A
AC adapter output voltage
19 V
Internal memory installed
No
Low Power Efficient-cores
2
Processor boost frequency
4.9 GHz
Ethernet LAN (RJ-45) ports
1
VGA (D-Sub) ports quantity
0
On-board graphics card model
Intel Arc 130T
Thunderbolt 4 ports quantity
2
Efficient-core base frequency
1.3 GHz
Storage drive sizes supported
M.2
Supported storage drive types
SSD
Performance-core base frequency
1.7 GHz
Efficient-core Max Turbo Frequency
4.3 GHz
Number of storage drives supported
1
Performance-core Max Turbo Frequency
4.9 GHz
Low Power Efficient-core Base Frequency
700 MHz
Low Power Efficient-core Max Turbo Frequency
2.5 GHz
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
3
