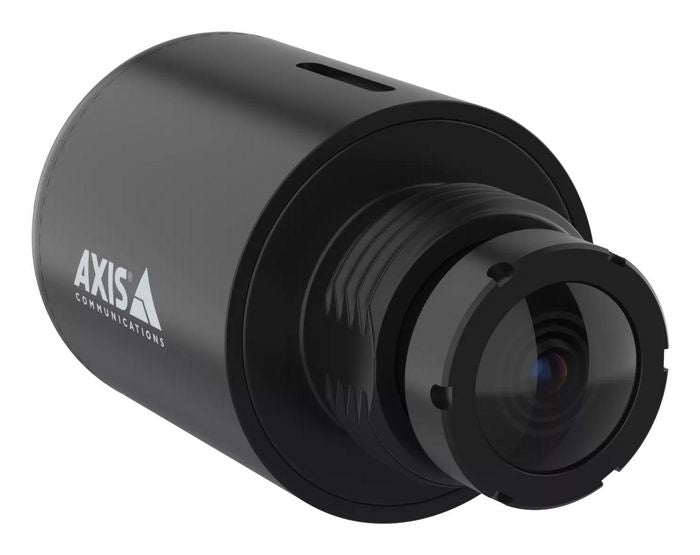

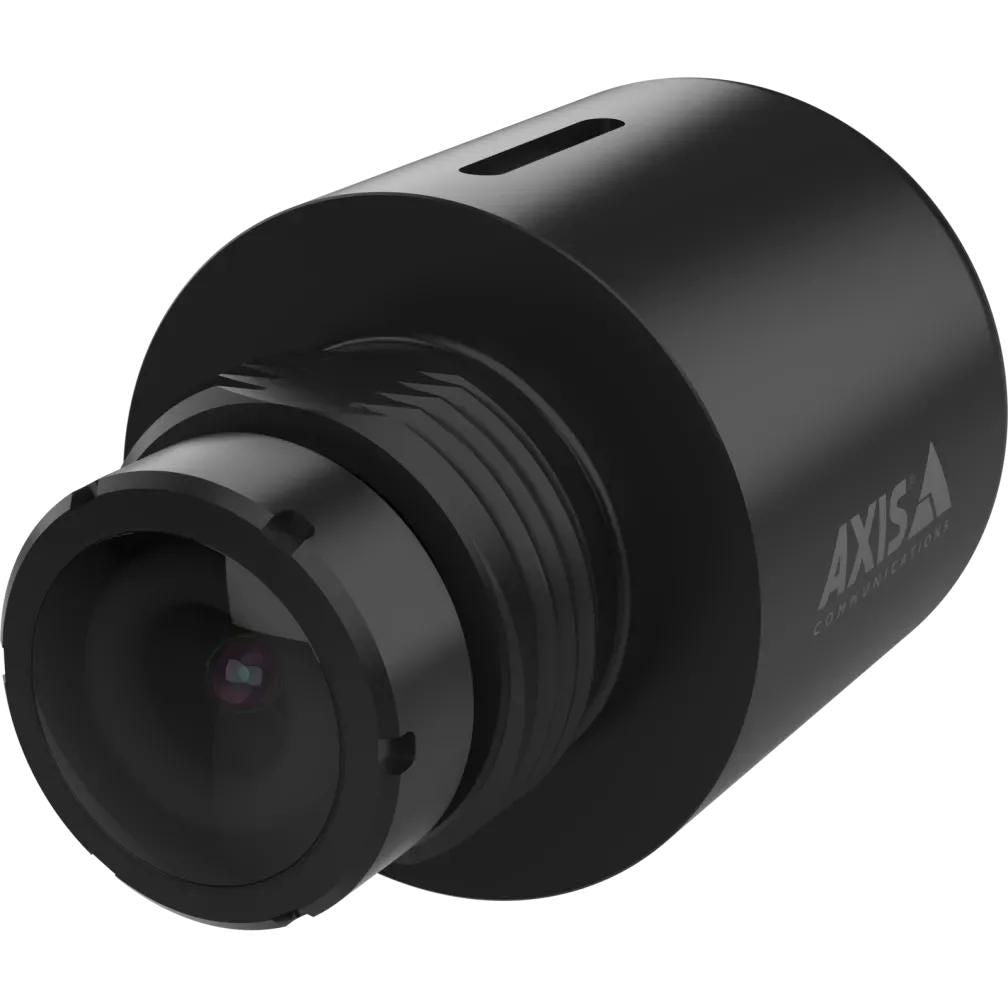

Axis 02868-001 F2107-RE Sensor Unit – 5MP Outdoor CMOS, IP66, Aluminium
Axis 02868-001 F2107-RE Sensor Unit – 5MP Outdoor CMOS, IP66, Aluminium
5MP CMOS sensor | 110° wide field of view | Rugged aluminium housing | IP66, IP67, IP6K9K certified
Regular price
£371.39 GBP
(incl. VAT)
Regular price
Sale price
£371.39 GBP
(incl. VAT)
Unit price
/
per
Shipping calculated at checkout.
In stock: 50
Couldn't load pickup availability
- Trusted by Thousands
- Order with confidence
- Fully tracked shipping
Product Description:
The Axis 02868-001 F2107-RE Sensor Unit is engineered for high-performance outdoor surveillance. With a 5MP CMOS sensor and a wide 110° horizontal field of view, this sensor unit captures detailed images in challenging environments. Its rugged aluminium housing and IP66, IP67, and IP6K9K certifications ensure reliable operation in all weather conditions. The 2.8mm focal length and M12 lens mount provide versatile installation options, making it ideal for demanding security applications.
Key Features:
- 5MP CMOS sensor for high-quality imaging
- 110° horizontal field of view
- Rugged aluminium construction
- IP66, IP67, IP6K9K certified for outdoor durability
- 2.8mm focal length, M12 lens mount
What's Included:
- Axis F2107-RE Sensor Unit (cables and mounting accessories not included)
Warranty and Certification:
- 5-year manufacturer warranty
- CE, RoHS compliant
Key Features:
- 5MP CMOS sensor for high-quality imaging
- 110° horizontal field of view
- Rugged aluminium construction
- IP66, IP67, IP6K9K certified for outdoor durability
- 2.8mm focal length, M12 lens mount
What's Included:
- Axis F2107-RE Sensor Unit (cables and mounting accessories not included)
Warranty and Certification:
- 5-year manufacturer warranty
- CE, RoHS compliant

Usage:
Install the sensor unit outdoors in a suitable location. Connect to compatible main units using appropriate cables. Use the M12 lens mount for flexible lens options. Ensure the unit is securely mounted for reliable surveillance.
Key Product Details:
MPN: 02868-001
EAN: 7331021085886
Manufacturer: Axis
Condition: New
Technical Specifications:
| Warranty | 5 Year(s) |
|---|---|
| Resolution | 2592 x 1944 pixels |
| Sensor Type | CMOS |
| Product Colour | Black |
| Housing Material | Aluminium |
| Image Sensor Size | 1/2.78 " |
| Focal Length Range | 2.8 mm |
| Placement Supported | Universal |
| Lens Mount Interface | M12 |
| F-Number (Relative Aperture) | 2 |
| International Protection (Ip) Code | IP66, IP67, IP6K9K |
