Vivolink
Vivolink VLEXTA170 AV Extender – Transmitter & Receiver, 100m, Cat5e, Black
Vivolink VLEXTA170 AV Extender – Transmitter & Receiver, 100m, Cat5e, Black
AV transmitter and receiver | 100m audio transmission | Three audio inputs | Power over Cable (PoC)
Regular price
£141.28 GBP
(incl. VAT)
Regular price
Sale price
£141.28 GBP
(incl. VAT)
Unit price
/
per
Shipping calculated at checkout.
In stock: 12
Couldn't load pickup availability
- Trusted by Thousands
- Order with confidence
- Fully tracked shipping
Product Description:
Product Description: The Vivolink VLEXTA170 AV Extender Kit is designed for professional and home AV environments, providing reliable audio transmission up to 100 metres over Cat5e cable. Featuring three selectable audio inputs, Power over Cable (PoC), and synchronised outputs, this kit ensures seamless integration and high-quality performance. Built for durability and easy installation, it is CE and RoHS certified for safety and compliance.
Key Features:
- Three selectable audio inputs and synchronised outputs
- Power over Cable (PoC) for simplified setup
- Supports up to 100m transmission distance (Cat5e)
- Wall mountable with included brackets
- Durable, compact design in black finish
What's Included:
- 1 x Transmitter unit
- 1 x Receiver unit
- 1 x 12V/1A power supply (EU plug)
- Mounting brackets
- User manual
Warranty and Certification:
2-year manufacturer warranty. CE and RoHS compliant for UK/EU use
Key Features:
- Three selectable audio inputs and synchronised outputs
- Power over Cable (PoC) for simplified setup
- Supports up to 100m transmission distance (Cat5e)
- Wall mountable with included brackets
- Durable, compact design in black finish
What's Included:
- 1 x Transmitter unit
- 1 x Receiver unit
- 1 x 12V/1A power supply (EU plug)
- Mounting brackets
- User manual
Warranty and Certification:
2-year manufacturer warranty. CE and RoHS compliant for UK/EU use
Usage:
Connect the transmitter and receiver units using Cat5e cable. Select the desired audio input on the transmitter. Use Power over Cable (PoC) to power the units through the cable. Mount units on the wall using included brackets if needed.
Key Product Details:
MPN: VLEXTA170
EAN: 5711783853855
Manufacturer: Vivolink
Condition: New

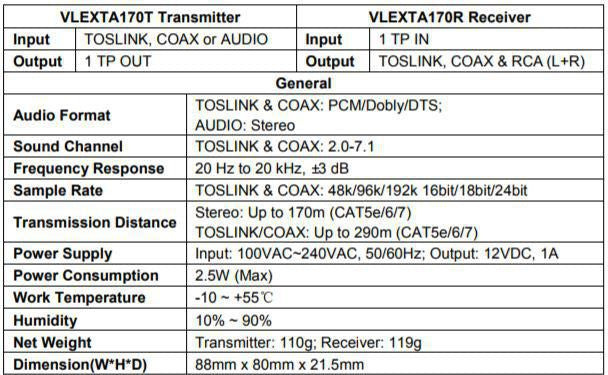

Technical Specifications:
| Type | AV transmitter & receiver |
|---|---|
| Depth | 80 mm |
| Wi-Fi | No |
| Width | 80 mm |
| Height | 21.5 mm |
| Weight | 240 g |
| Video in | 1 |
| Bluetooth | No |
| Video out | 1 |
| DC-in jack | Yes |
| Audio input | 3 |
| Audio output | 3 |
| Audio support | Yes |
| Package depth | 155 mm |
| Package width | 156 mm |
| LED indicators | Yes |
| Output current | 1 A |
| Package height | 120 mm |
| Package weight | 484 g |
| Product colour | Black |
| Wall mountable | Yes |
| Audio (L/R) out | 1 |
| IR pass-through | Yes |
| AC input voltage | 100 - 240 V |
| Audio RCA outputs | 1 |
| RJ-45 input ports | 1 |
| AC input frequency | 50 - 60 Hz |
| HDCP & EDID bypass | Yes |
| RJ-45 output ports | 1 |
| AC adapter included | Yes |
| 3.5 mm (1/8-inch) in | Yes |
| 3.5 mm (1/8-inch) out | Yes |
| Audio output channels | 2.0 channels |
| Cable types supported | Cat5e |
| External power adapter | Yes |
| Audio formats supported | PCM |
| Connectivity technology | Wired |
| Digital audio coaxial out | 1 |
| Included power plug types | EU |
| Maximum transfer distance | 100 m |
| Mounting brackets included | Yes |
| Operating temperature (T-T) | -10 - 55 °C |
| Receiver dimensions (WxDxH) | 88 x 80 x 21.5 mm |
| Operating voltage (receiver) | 12 V |
| Transmitter dimensions (WxDxH) | 88 x 80 x 21.5 mm |
| Operating voltage (transmitter) | 12 V |
| Operating relative humidity (H-H) | 10 - 90% |
| Power consumption (receiver) (max) | 2.5 W |
| Power consumption (transmitter) (max) | 2.5 W |
