The Vivolink VLCP8B is a professional-grade 8-button control keypad, perfect for managing AV systems in meeting rooms, classrooms, and conference spaces. With customisable illuminated buttons and a wide range of connectivity options, this panel delivers reliable and intuitive control. Built to high standards and certified for safety, it comes with a comprehensive accessory kit for easy installation and use.
Key Features: - 8 function keys with indication lights - Customisable button actions via serial control - IR control, relay ports, and RS232/RS485 support - Illuminable keys for clear visibility - Mounts in standard European junction box (60 mm centres)

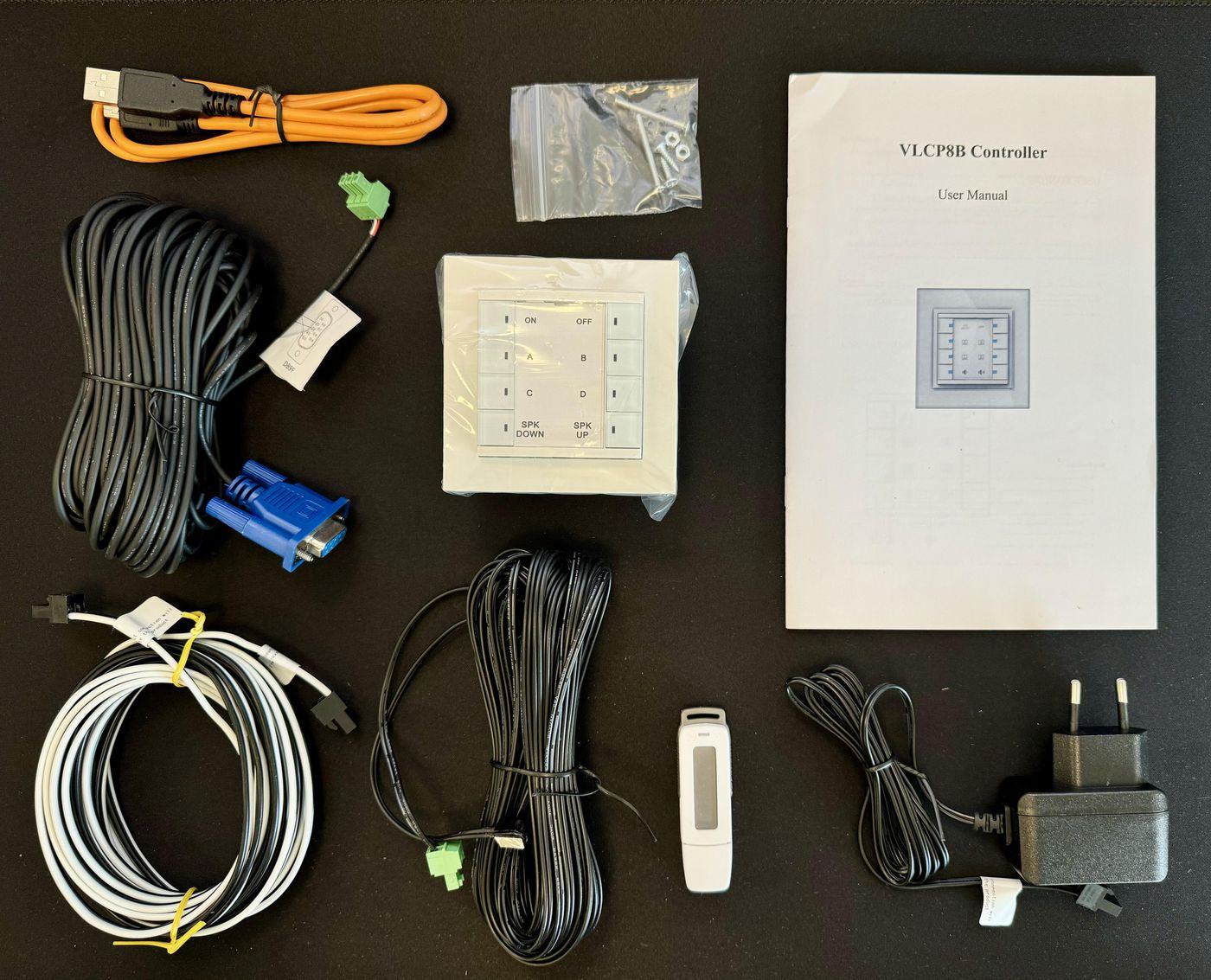

What's Included: - Control panel with white frame - Power supply - RS232 cable (15m) - Transfer cable (5m) - IR cable (10m) - USB cable - Software on USB disk - IR eye - Manual
Warranty and Certification: - CE and RoHS certified for safety and compliance - Manufacturer warranty included
Install the keypad in a standard European junction box. Connect power and AV system cables using included accessories. Configure button actions via serial control for customised operation.
Key Product Details:
MPN: VLCP8B
EAN: 5712505564585
Manufacturer: Vivolink
Condition: New
Technical Specifications:
Depth
172 mm
Width
271 mm
Height
99 mm
Weight
1.01 kg
Illuminable
Yes
Connector(s)
DC in, DC out, RS-232, RS-485, IR Out, Relay 12v output
