Vivolink VL120004 Audio Amplifier – 2.0 Channel 2x20W Class D Black

Vivolink VL120004 Audio Amplifier – 2.0 Channel 2x20W Class D Black

2.0 Channel Audio Amplifier | 2x20W Class D Output | Bass & Treble Control | Metal Housing with RS-232

Regular price £158.98 GBP (incl. VAT)
Regular price Sale price £158.98 GBP (incl. VAT)
Sale Sold out
Shipping calculated at checkout.

In stock: 150

  • Trusted by Thousands
  • Order with confidence
  • Fully tracked shipping
Product Description:
The Vivolink VL120004 audio amplifier delivers high-quality sound in a compact, robust design. With 2x20W output, Class D efficiency, and versatile connectivity, it’s ideal for home audio setups. Easily adjust bass, treble, and volume to suit your preferences. Built for reliability and safety, this amplifier is CE and RoHS certified and comes with a manufacturer warranty.

Key Features:
- 2.0 channel Class D amplifier with 2x20W output
- Multiple audio inputs: 3.5mm, L/R, and headphone
- Bass, treble, and volume adjustment via buttons
- Durable metal housing with LED indicators
- RS-232 remote control support

What's Included:
- Vivolink VL120004 audio amplifier
- User manual

Warranty and Certification:
Manufacturer warranty included. CE and RoHS certified for safety and compliance.
View full details

Usage:

Connect your audio sources using the 3.5mm, L/R, or headphone inputs. Adjust bass, treble, and volume using the front buttons. Control remotely via RS-232 if needed. Use bridge mode to increase output power.

Key Product Details:

MPN: VL120004

EAN: 5712505764800

Manufacturer: Vivolink

Condition: New

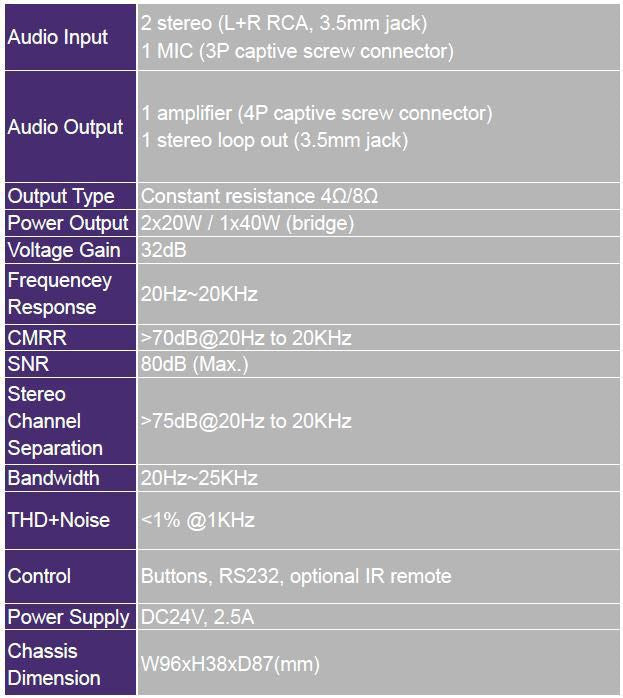

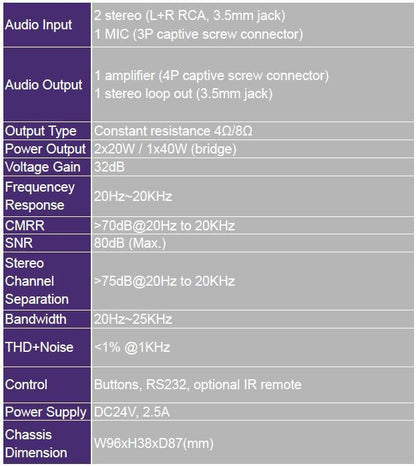

Technical Specifications:

Depth87 mm
Width96 mm
Height38 mm
ManualYes
Weight790 g
PurposeHome
MaterialMetal
DC-in jackYes
Audio (L/R) in1
LED indicatorsYes
Product colourBlack
Volume controlButtons
Amplifier classD
Audio (L/R) out1
Bass adjustmentYes
Bridge functionYes
Frequency range20 - 20000 Hz
AC input voltage110 - 220 V
Built-in displayNo
Headphone outputs1
Treble adjustmentYes
Remote control typeRS-232
Phono audio in (L,R)Yes
Audio output channels2.0 channels
Headphone connectivity3.5 mm
Connectivity technologyWired
Speakers connectivity type3.5mm
Signal-to-Noise Ratio (SNR)80 dB
Total Harmonic Distortion (THD)1%
RMS power output per channel (4 Ohm)20 W
RMS power output per channel (8 Ohm)20 W
Bridge-mode power output per channel (4 Ohm)40 W
Bridge-mode power output per channel (8 Ohm)40 W
