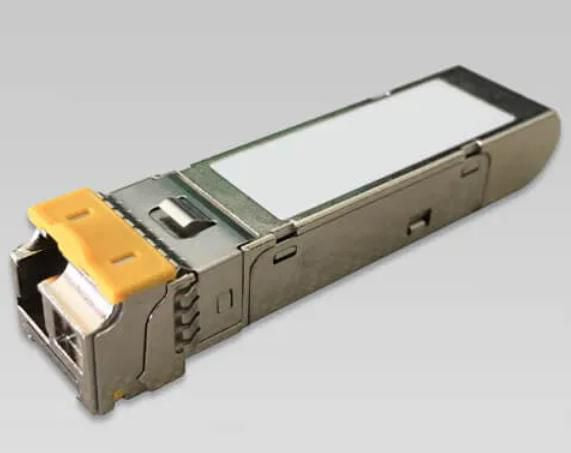

Planet MGB-TSB SFP Transceiver – Mini-GBIC Multi-mode WDM 1000Mbps 2KM
Planet MGB-TSB SFP Transceiver – Mini-GBIC Multi-mode WDM 1000Mbps 2KM
SFP transceiver for Gigabit Ethernet | Multi-mode fibre support | 2km transfer distance | Wide temperature range -40°C to 75°C
Regular price
£30.33 GBP
(incl. VAT)
Regular price
Sale price
£30.33 GBP
(incl. VAT)
Unit price
/
per
Shipping calculated at checkout.
In stock: 7
Couldn't load pickup availability
- Trusted by Thousands
- Order with confidence
- Fully tracked shipping
Product Description:
The Planet MGB-TSB SFP transceiver delivers dependable Gigabit Ethernet connectivity over multi-mode fibre, making it an excellent choice for industrial and commercial networking. With support for WDM technology, a 2km transfer distance, and a robust operating temperature range, this module ensures stable performance in challenging environments. Digital Diagnostics Monitoring (DDM) provides real-time status updates, while the hot-pluggable design allows for easy installation and maintenance.
Key Features:
- Wide operating temperature range (-40°C to 75°C)
- 1000Mbps maximum data transfer rate
- Digital Diagnostics Monitoring (DDM) supported
- Hot-pluggable mini-GBIC interface
What's Included:
- 1 x Planet MGB-TSB SFP Transceiver
Warranty and Certification:
3-year manufacturer warranty, CE and RoHS compliant
Key Features:
- Wide operating temperature range (-40°C to 75°C)
- 1000Mbps maximum data transfer rate
- Digital Diagnostics Monitoring (DDM) supported
- Hot-pluggable mini-GBIC interface
What's Included:
- 1 x Planet MGB-TSB SFP Transceiver
Warranty and Certification:
3-year manufacturer warranty, CE and RoHS compliant
Usage:
Install the transceiver into an SFP MSA compliant port. Connect to multi-mode fibre for network data transmission. Use in industrial or commercial environments requiring wide temperature tolerance. Monitor status via Digital Diagnostics Monitoring (DDM).
Key Product Details:
MPN: MGB-TSB
EAN: 4711605284387
Manufacturer: Planet
Condition: New
Technical Specifications:
| Warranty | 3 Year(s) |
|---|---|
| Interface Type | mini-GBIC |
| Product Colour | Metallic, Orange |
| Rx Wavelength (Max) | 1310 nm |
| Tx Wavelength (Max) | 1550 nm |
| Sfp Transceiver Type | Fiber optic |
| Fiber Optic Connector | LC |
| Maximum Transfer Distance | 2000 m |
| Maximum Data Transfer Rate | 1000 Mbit/s |
| Operating Temperature (T-T) | -40 - 75 °C |
| Multi-Mode Fiber (Mmf) Supported | Yes |
| Single-Mode Fiber (Smf) Supported | No |
| Digital Diagnostics Monitoring (Ddm) | Yes |
