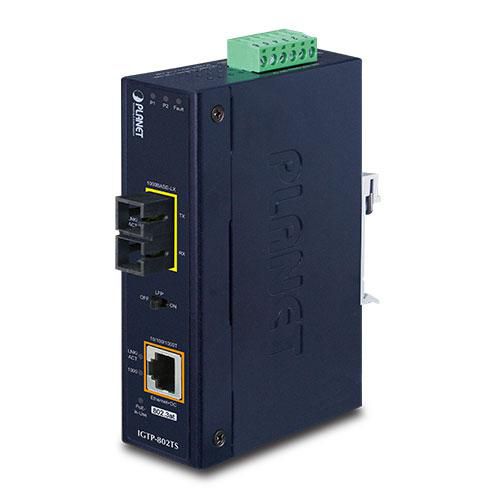

The Planet IGTP-802TS Industrial Media Converter offers reliable, high-speed network extension with integrated PoE+ power delivery. Designed for challenging environments, it converts 1000BASE-LX fibre to 10/100/1000BASE-T Ethernet and supplies up to 30W of PoE+ power. Its robust IP30-rated metal housing and wide temperature tolerance ensure dependable performance in industrial settings. Certified to CE and FCC standards, this converter is backed by a 5-year warranty for added confidence.
Key Features: - Industrial-grade IP30 metal housing - Supports 1000BASE-LX single-mode fibre (SC connector) up to 20km - Delivers up to 30W PoE+ power output - Wide operating temperature: -40°C to 75°C
What's Included: - Planet IGTP-802TS Industrial Media Converter - User documentation
Warranty and Certification: - 5-year manufacturer warranty - CE and FCC certified

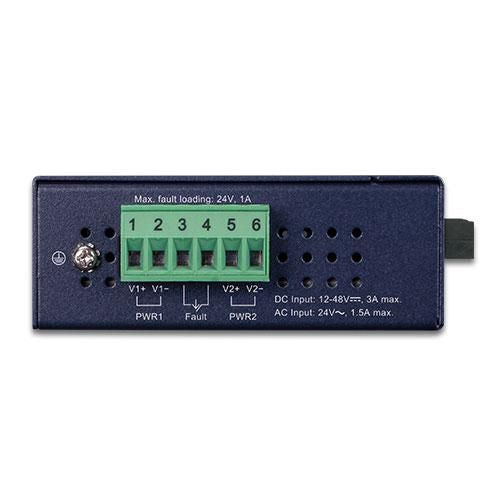

Connect fibre optic cable to the SC port for long-distance network extension. Plug Ethernet devices into the RJ45 ports to receive data and PoE+ power. Mount the unit on a DIN rail or wall in industrial environments. Use the dual power input options for reliable operation.
Key Product Details:
MPN: IGTP-802TS
EAN: 4711213686962
Manufacturer: Planet
Condition: New
Technical Specifications:
Internal
No
Warranty
5 Year(s)
Sensitivity
-23 dBmW
Certification
FCC Part 15 Class A, CE
Auto Mdi/Mdi-X
Yes
Led Indicators
Yes
Product Colour
Blue
Auto-Negotiation
Yes
Housing Material
Metal
Din Rail Mounting
Yes
Store-And-Forward
Yes
Operational Conditions
Operating relative humidity (H-H) 5 - 90 % Operating temperature (T-T) -40 - 75 °C Storage relative humidity (H-H) 5 - 90 % Storage temperature (T-T) -40 - 85 °C
