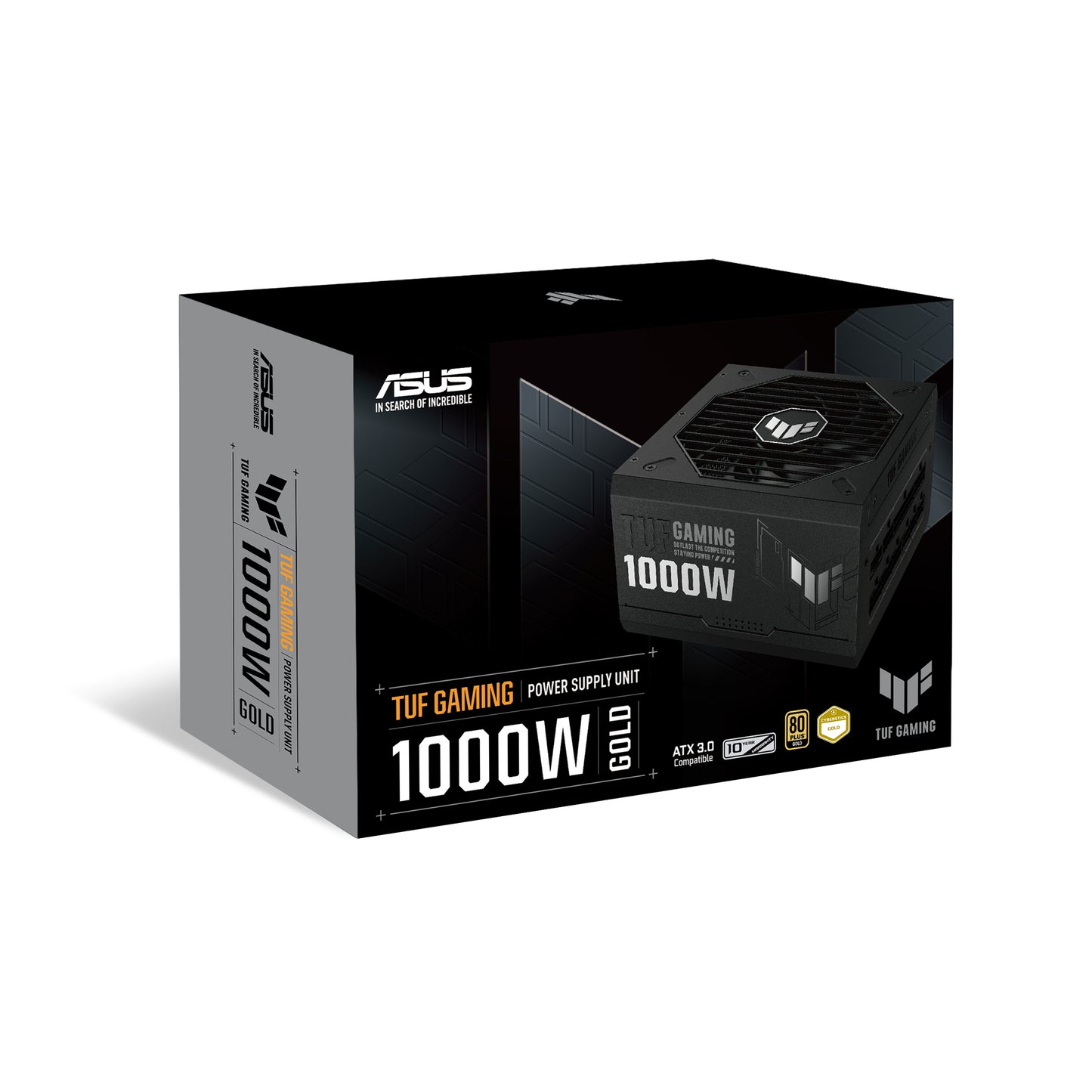

The Asus TUF Gaming 1000W Gold Power Supply Unit is designed for gamers and PC enthusiasts seeking reliable, efficient, and long-lasting power delivery. With military-grade components, 80 PLUS Gold certification, and a fully modular design, this PSU ensures your system runs smoothly and efficiently.
Key Features: - 1000W total power output for demanding builds - 80 PLUS Gold certified for high efficiency - Fully modular cabling for easy installation and tidy builds - Military-grade capacitors and chokes for enhanced reliability - Active cooling with a 13.5 cm fan for optimal temperature control
What's Included: - Asus TUF Gaming 1000W Gold Power Supply Unit - AC power cable - CPU, PCIe, Peripheral (Molex), and SATA cables - Cable ties - User documentation
Warranty and Certification: - 3-year manufacturer warranty - 80 PLUS Gold, RoHS
Install the PSU into your PC case using standard ATX mounting points. Connect the fully modular cables to your motherboard, GPU, and drives as needed. Use the on/off switch to power the unit and ensure proper cooling with the built-in fan.
Key Product Details:
MPN: 90YE00S1-B0NA00
EAN: 4711081786412
Manufacturer: Asus
Condition: New
Technical Specifications:
Depth
150 mm
Width
150 mm
Height
86 mm
Weight
2.48 kg
Purpose
PC
Efficiency
92%
ATX version
3.0
Total power
1000 W
Cabling type
Fully-Modular
Cooling type
Active
Fan diameter
13.5 cm
Package type
Box
On/off switch
Yes
Package depth
200 mm
Package width
310 mm
Number of fans
1 fan(s)
Package height
108 mm
Package weight
3.17 kg
Product colour
Black
Cables included
AC, CPU, PCIe, Peripheral (Molex), SATA
AC input voltage
100 - 240 V
Combined power (+5V)
130 W
80 PLUS certification
80 PLUS Gold
Cable tie(s) included
Yes
Combined power (+12V)
1000 W
Combined power (-12V)
9.6 W
CPU power cable length
65 cm
Combined power (+3.3V)
130 W
Combined power (+5Vsb)
15 W
Compliance certificates
RoHS
SATA power cable length
120,400 mm
Max output current (+5V)
25 A
Max output current (+12V)
83.3 A
Max output current (-12V)
0.8 A
Power protection features
Over power, Over voltage, Overcharge, Overheating, Short circuit, Under power, Under voltage
Sustainability compliance
Yes
Max output current (+3.3V)
25 A
Max output current (+5Vsb)
3 A
Motherboard power connector
20+4 pin ATX
CPU power connector (4+4 pin)
Yes
ATX power connector (20+4 pin)
Yes
Motherboard power cable length
61 cm
PCI Express power cable length
67.5 cm
Number of SATA power connectors
5
Power supply unit (PSU) form factor
ATX
PCI Express power connectors (8-pin)
4
PCI Express power connectors (16-pin)
1
Peripheral (Molex) power cable length
150,400 mm
Peripheral (Molex) power connectors (4-pin)
4
